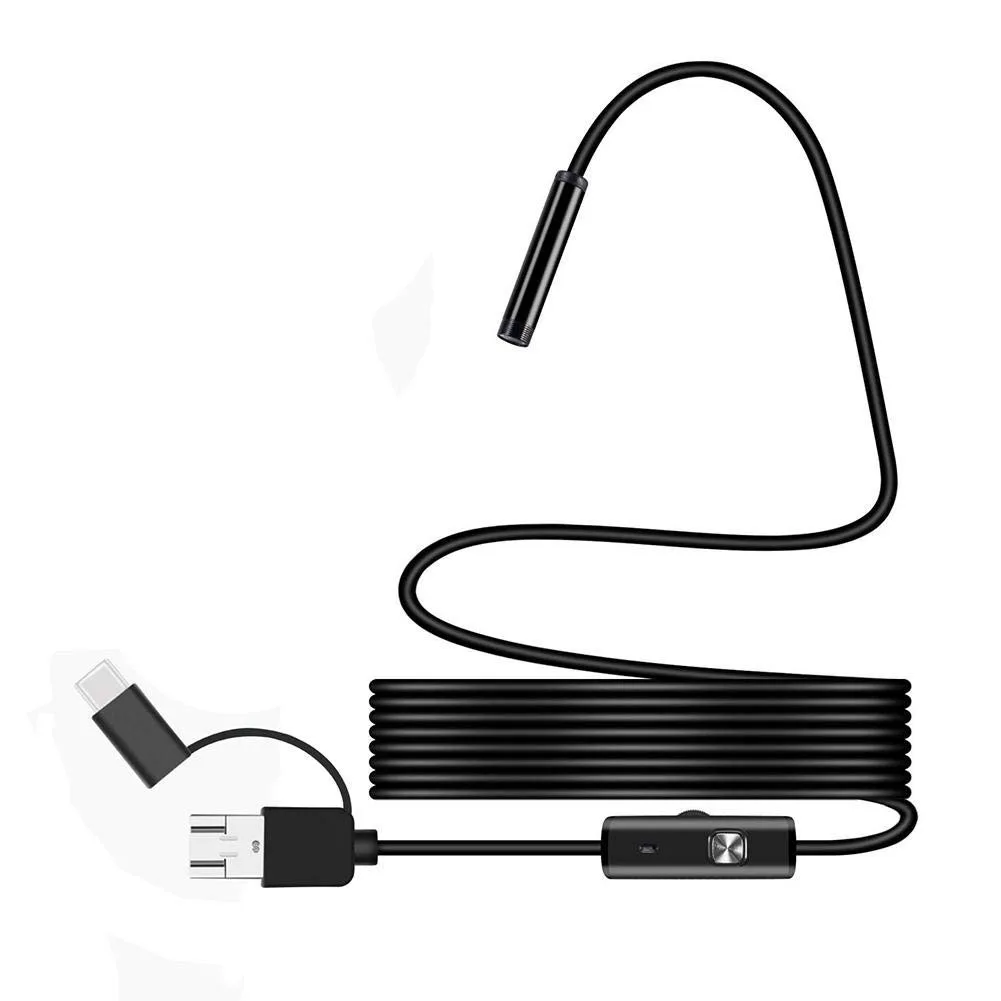

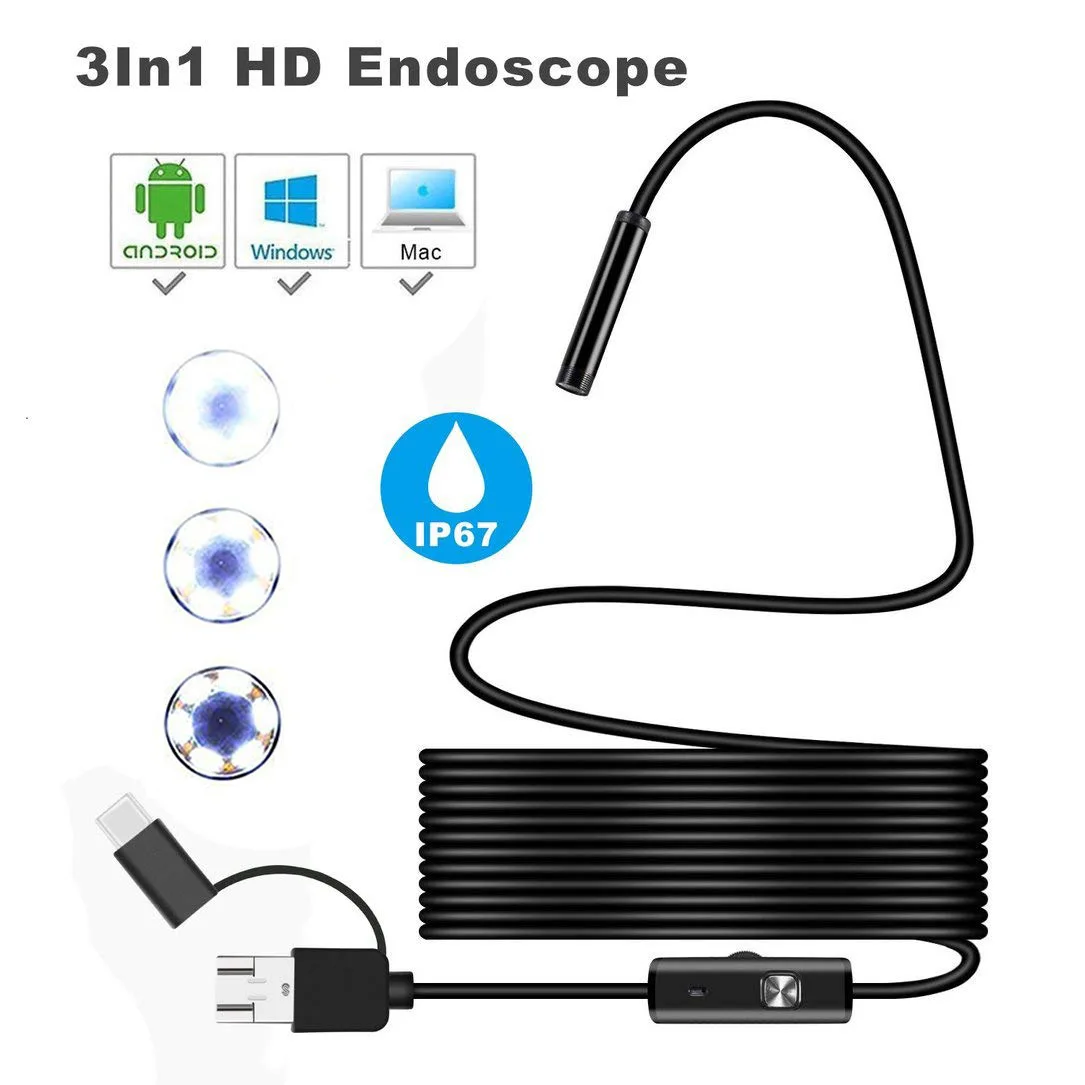

5.5mm /7mm 3 in 1 Endoscope USB Flexible Car Pipe Inspection Borescope Camera with 6 LED lights Support Type-C Android Phone PC

3 IN 1 Endoscope Features:

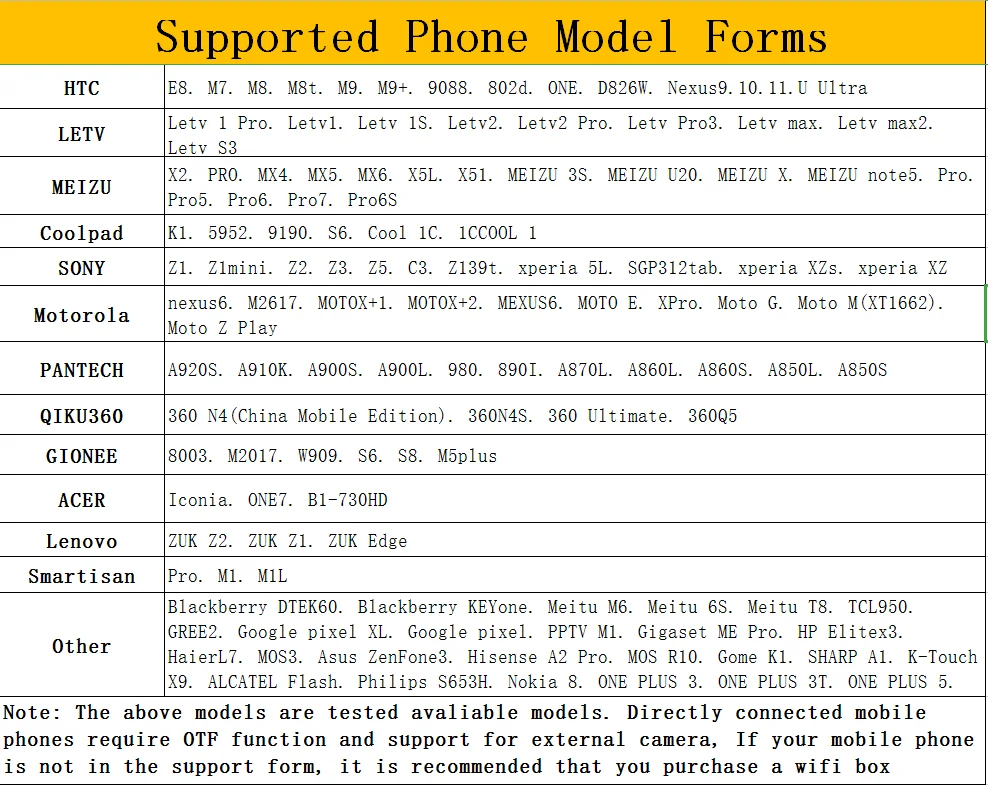

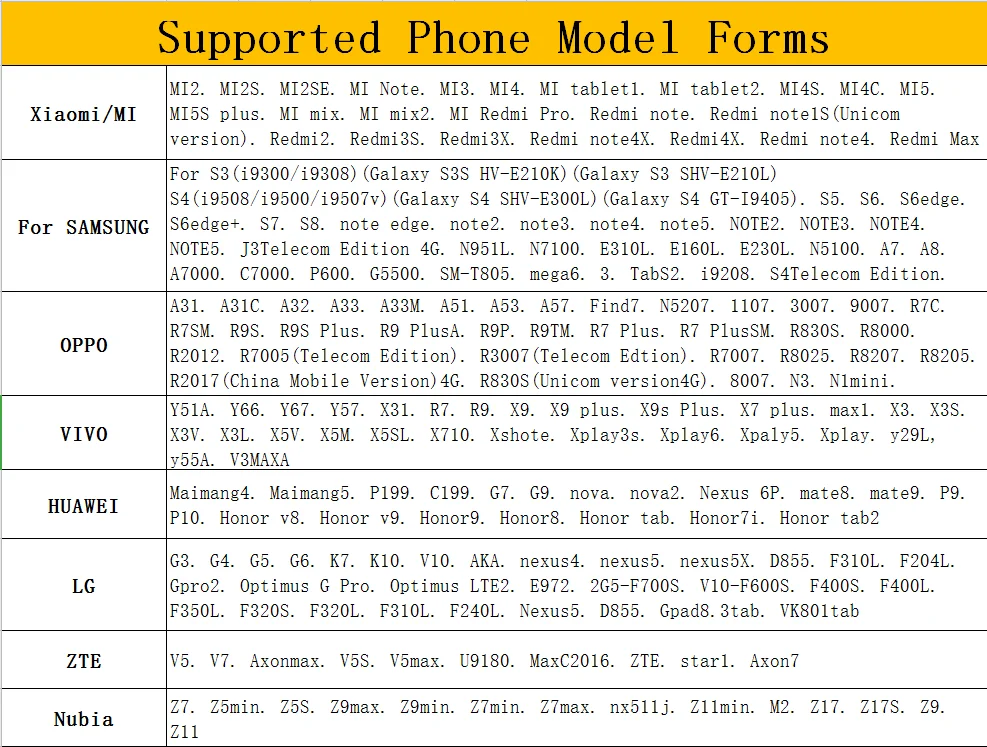

1.This endoscopio only works with Android 4.0 and above 4.1,4.2 system phone, does Not support iOS system; Support Android Phone which has OTG and UVC function (Your smart phone must be Genuine which have license and support external camera, make sure that it will not shield the external camera).

2. How to detect whether the phone has OTG function:

a. You need to have an OTG cable.

b. Use the OTG cable to connect phone with some equipments like keyboard, mouse, U disk, and then you can use it normally, it means that the phone has OTG function.

3. This endoskop camera is near focus distance camera, the focus distance is 3cm to 10cm. if the focus distance over 8cm, it can't get the clear picture.

4. Please read above points carefully. Please carefully check your phone before ordering, or we'll not be responsible due to the reasons above.

Specification:

Camera: 1/9 VGA COMS

Photo Format: JPEG

Video Format: AVI

Pixel: VGA 300k-5000k

Resolution: 640x480

Color: black

Focal Distance: 3cm-10cm(1.5Inch-3.9Inch)

Diameter: 5.5mm/7mm（optional）

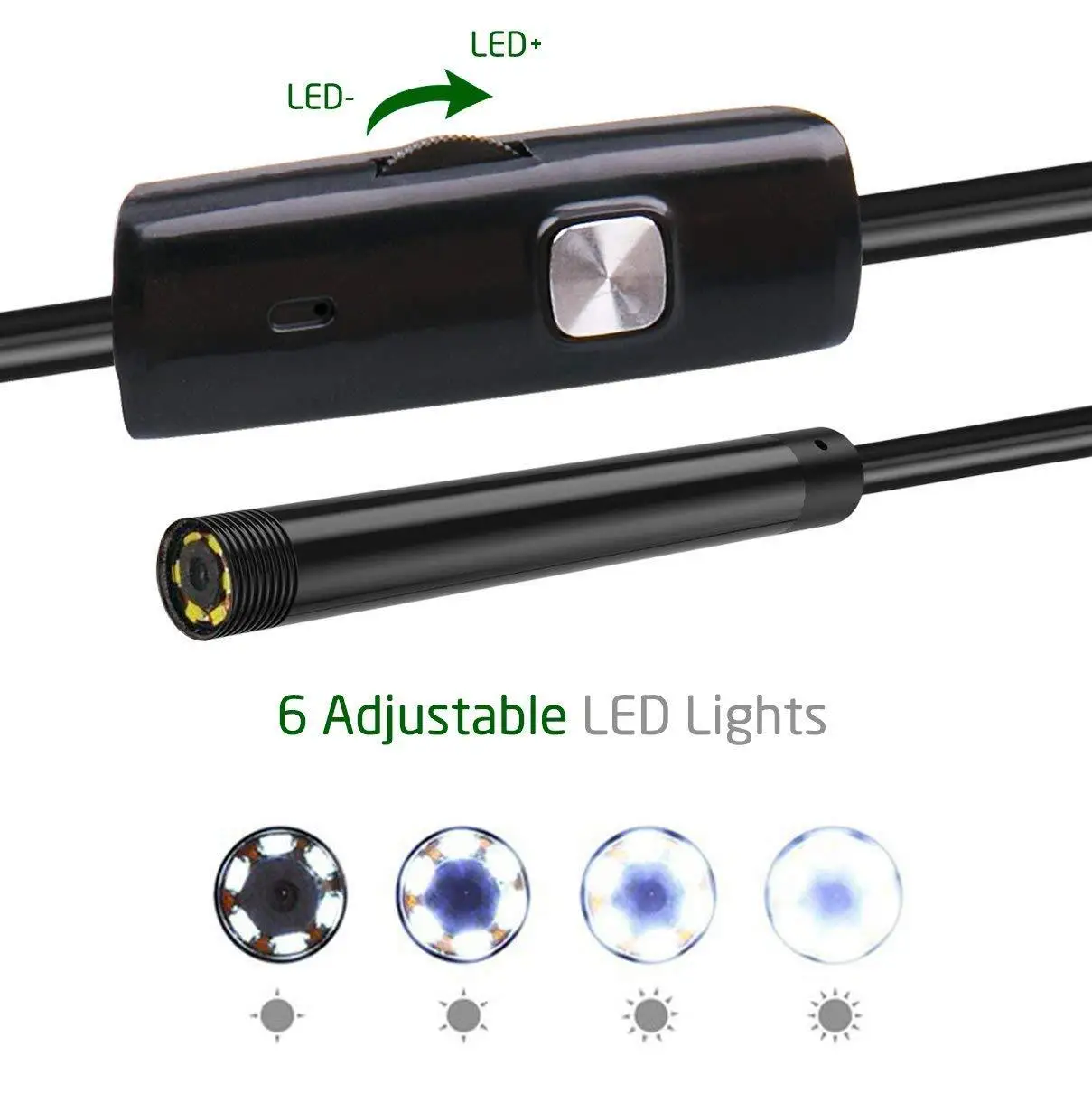

LED: 6 Adjustable White LED

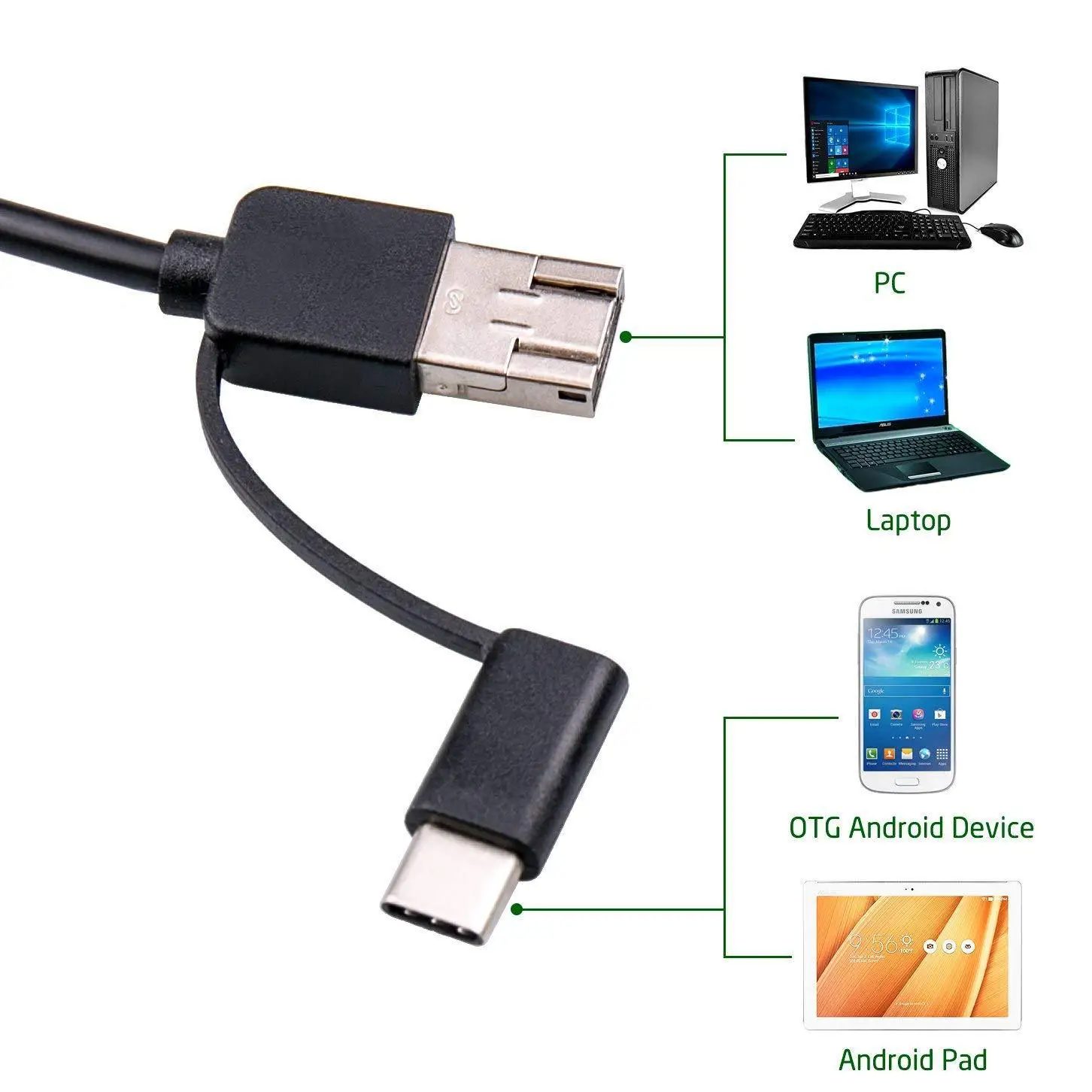

Support systems: Android/Windows 2000/XP/Vista/7/8/9/10

Cables: Soft/ Semi-rigid or Snake

Wide visual view angel: 67°

Cable length: 1M/1.5M/2M/3.5M/5M/10M(Optional)

Adapters: Micro USB to USB

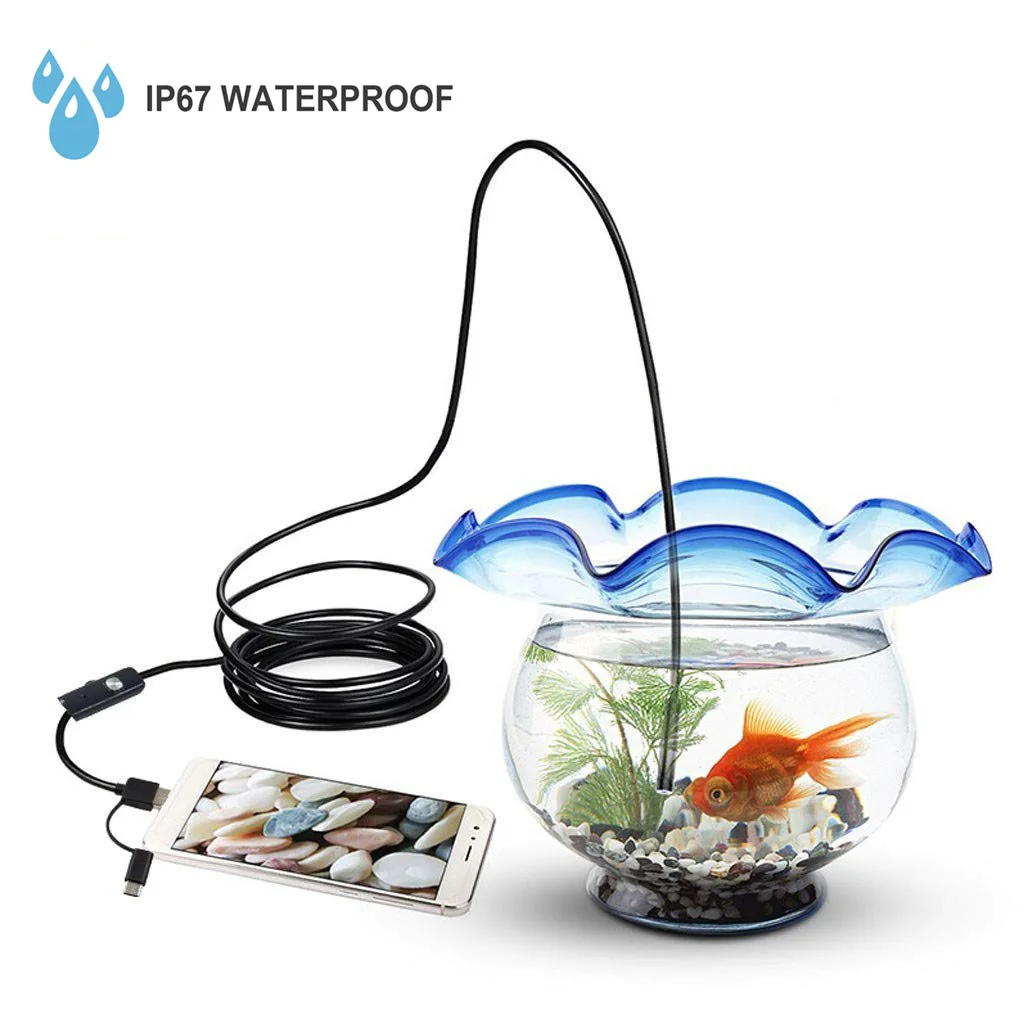

Waterproof level: IP67

Temperture: Up to 80℃

How to use:

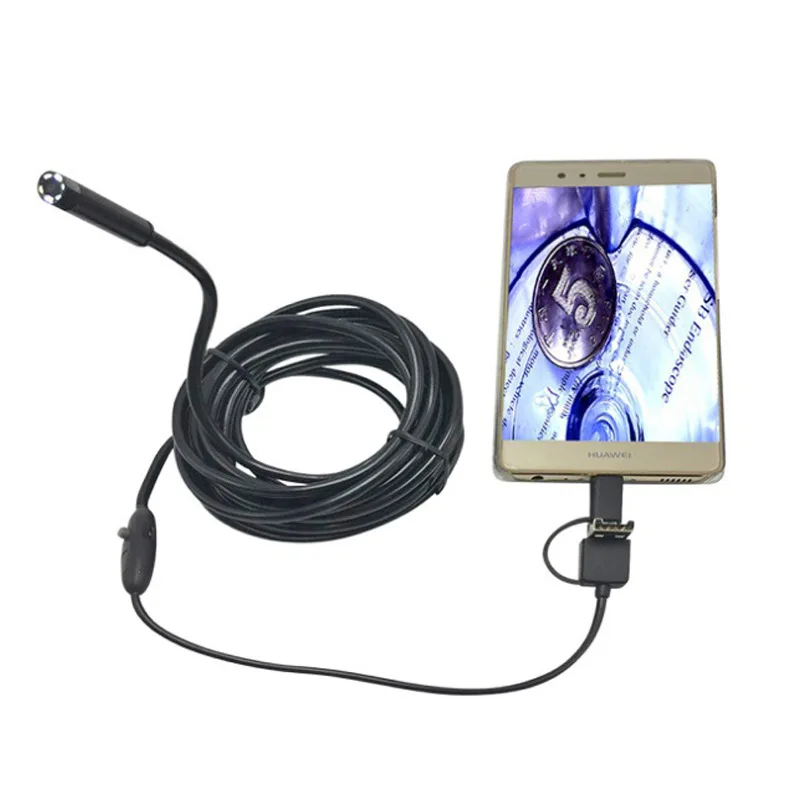

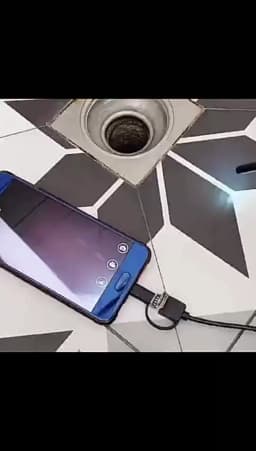

1.On Android phones: Scan the QR code on the Manual to install the APP, or from CD install the APP ,or go to download link to install the APP, then an icon appears on mobile desktop, click on the icon, the product is available to use. It's very easy to operate this android endoscope, just download an App and inserted the endoscope in your device, the App will automatic recognition it (please make sure your phone has OTG, UVC function and supports external camera).

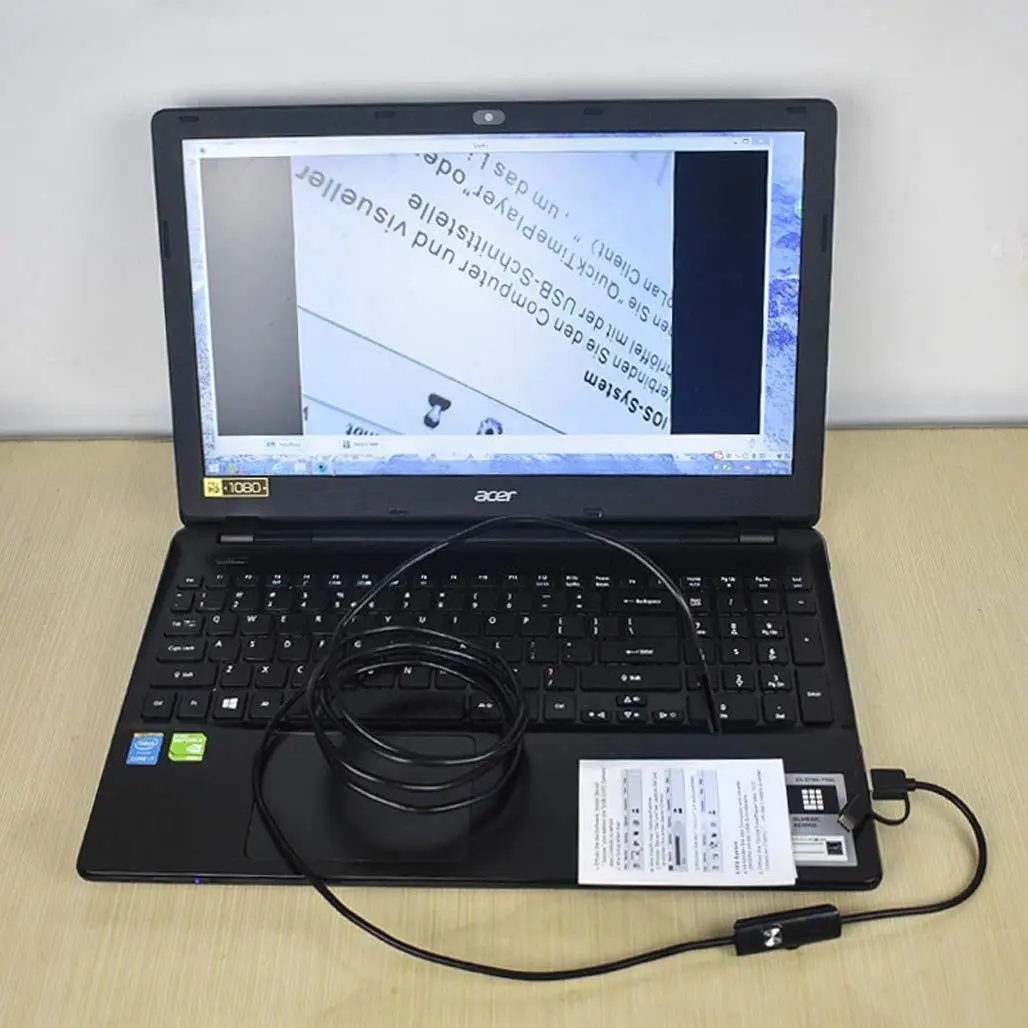

2. On computer: install the software in computer fistly (from the CD, or download it from internet), then open the software, insert the camera to computer, the driver will be installed in computer automatically. After that this camera can be used on computer with the software.

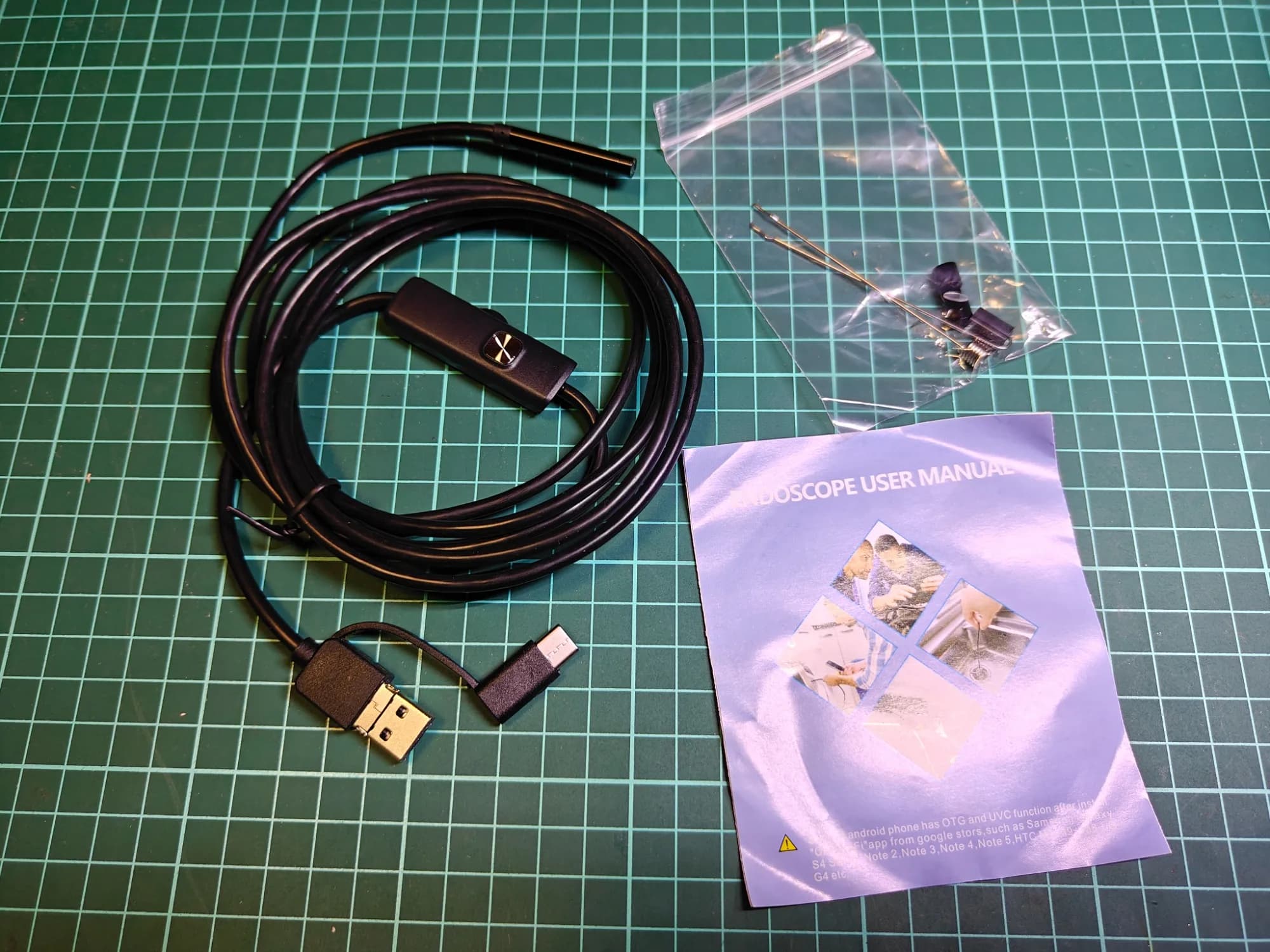

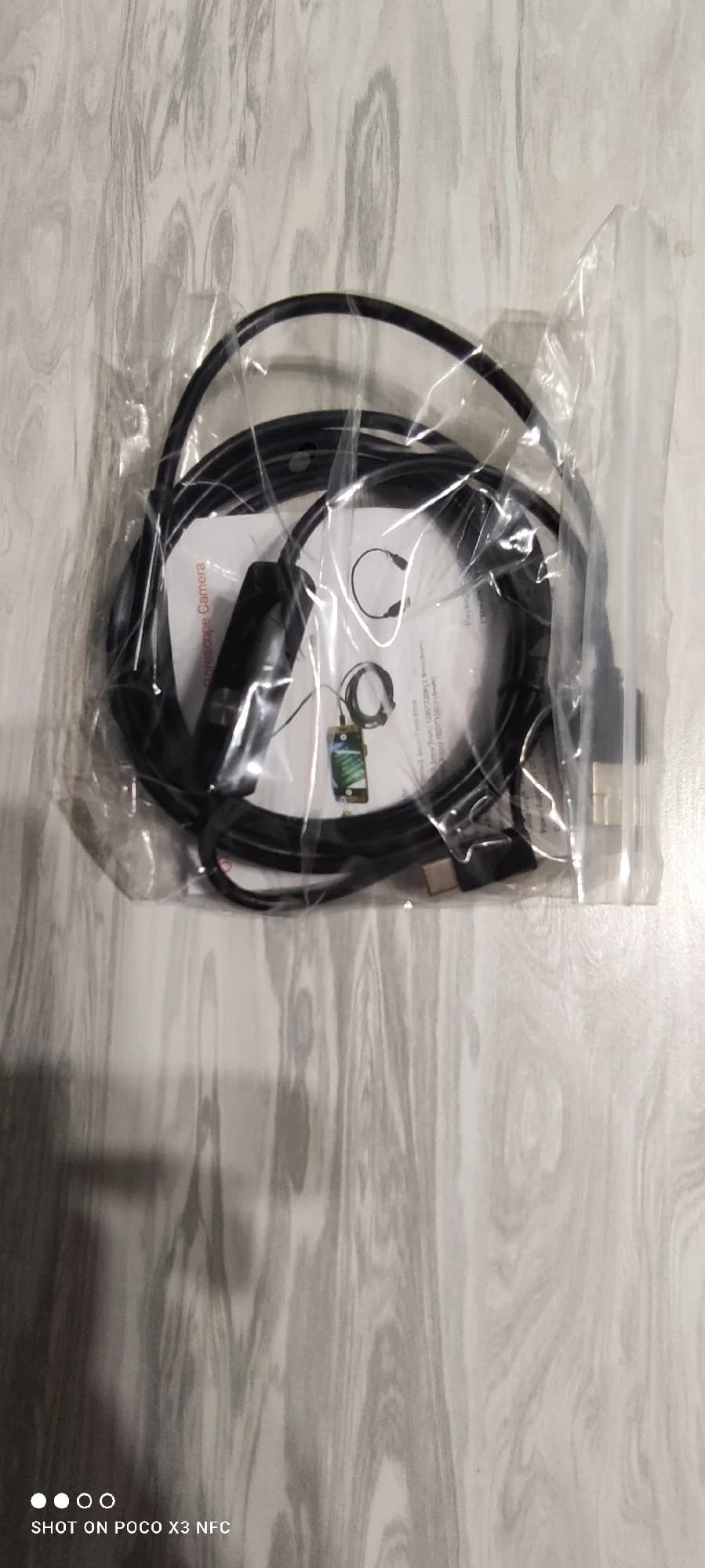

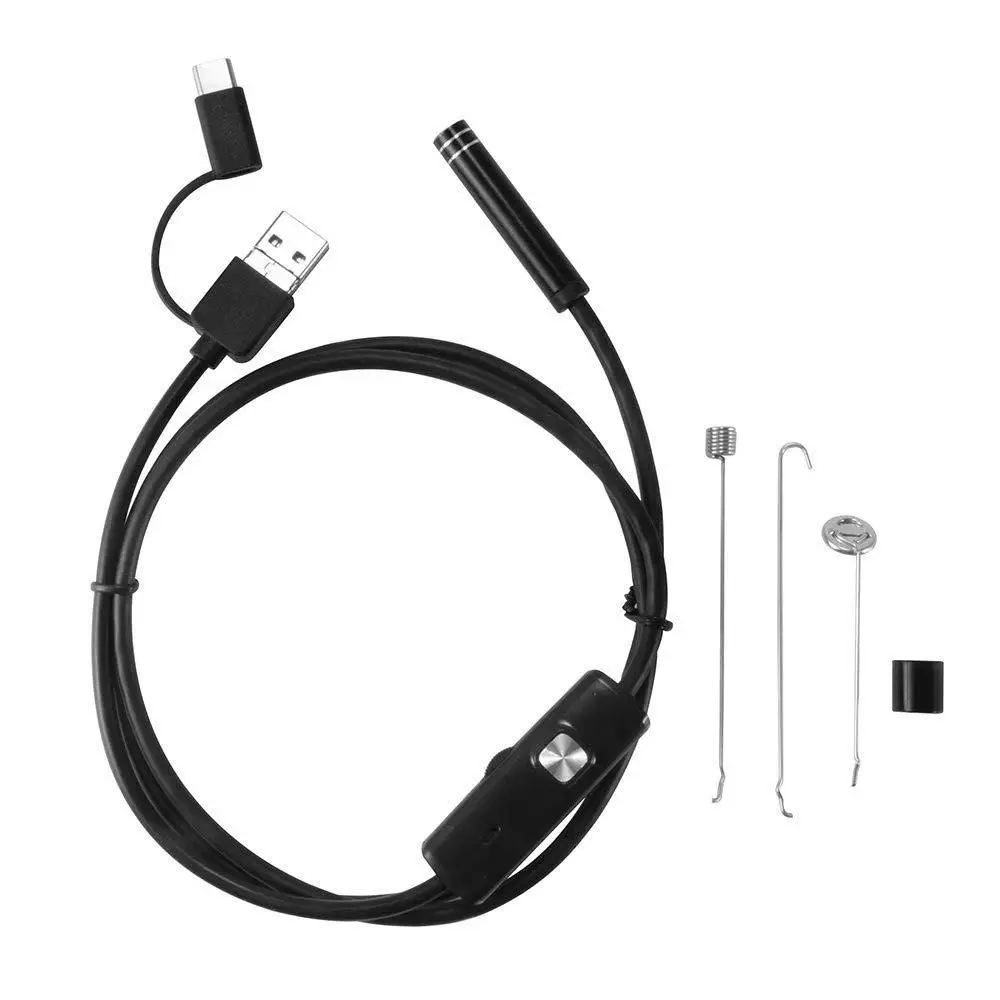

Packing List:

1 x Mini 3 in 1 Flexible Endoscope Camera

1 x Small Hook

1xMagnet

1xSide Audition

1xFixed Set
