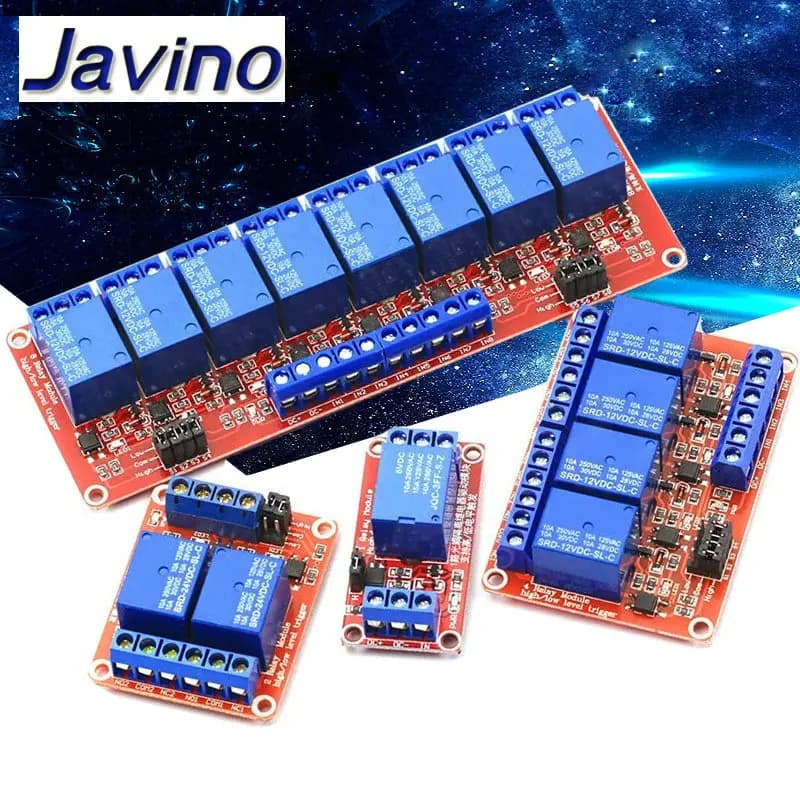

DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for arduino Raspberry Pi

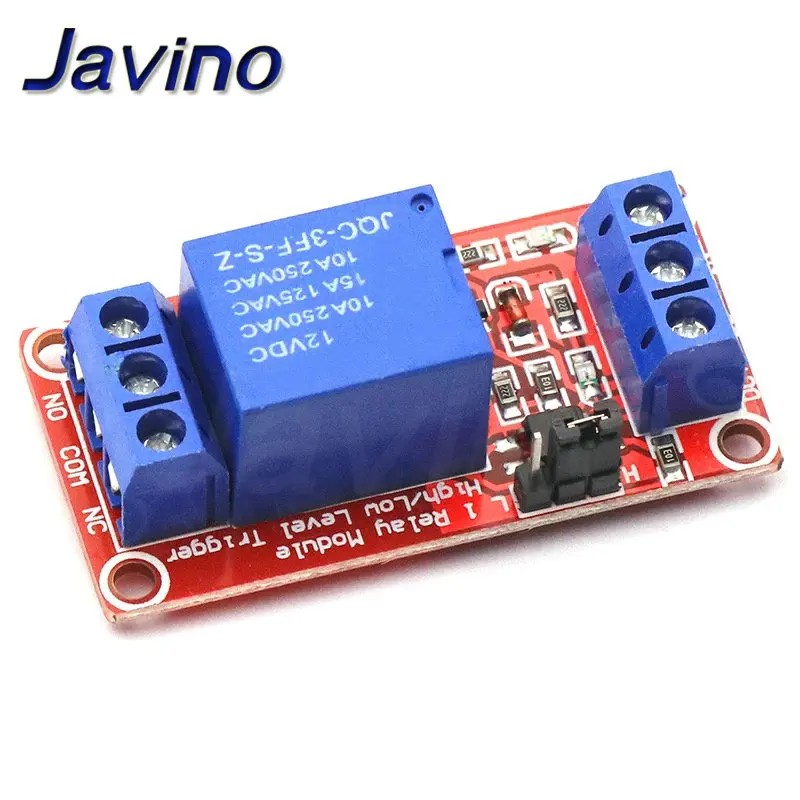

1 Channel Relay Module with Optocoupler

Description:

100% brand new and high quality

1-Channel relay module,with photoelectric isolation

The module can be high or low by a jumper setting trigger

With power and relay action indicator

The module Operating voltage 5V

The module uses genuine quality relay,normally open interfaces

Maximum load: AC 250V/10A,DC 30V/10A

Module interface:

   DC+: positive power supply (VCC)(5V)

   DC-: negative power supply (GND)

   IN: The control end,the driving current should be more than 4mACOM:

    The control of loop of earth wir

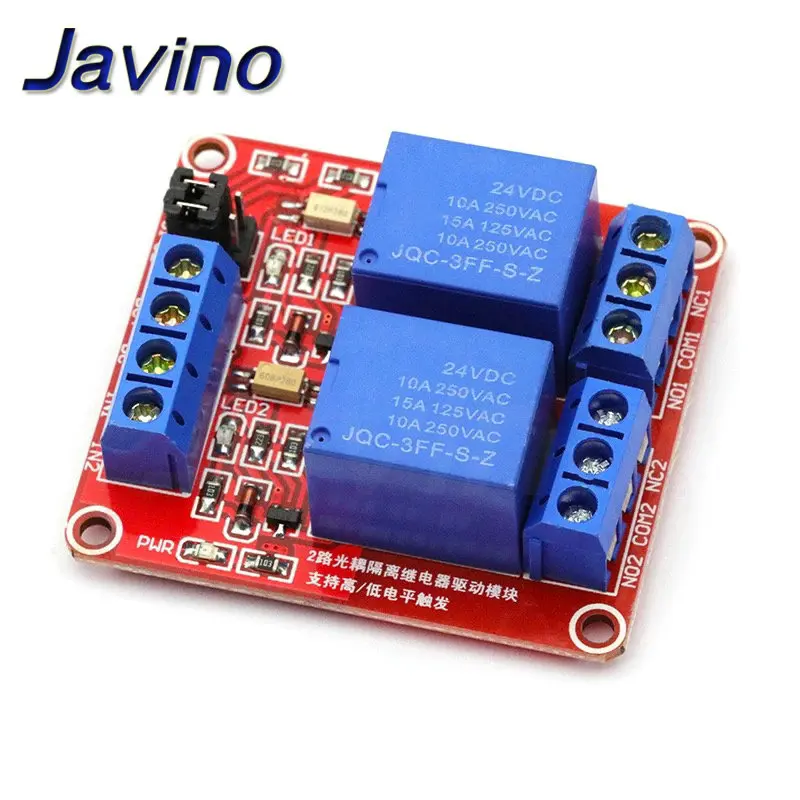

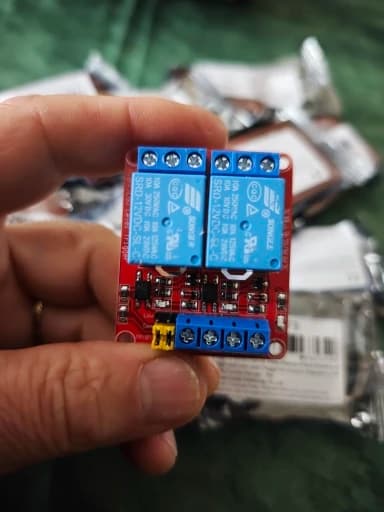

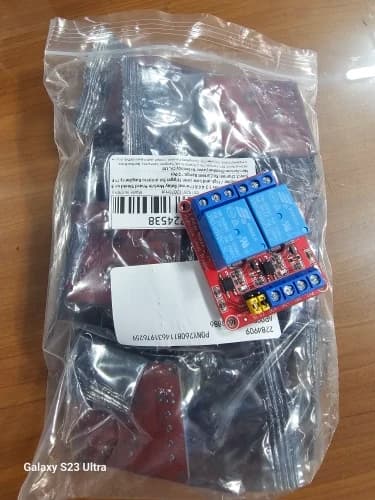

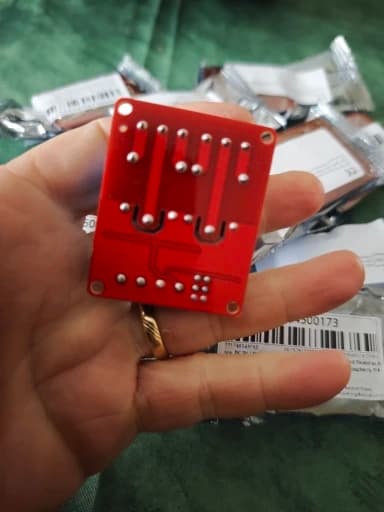

2 Channel Relay Module with Optocoupler

 Description:

1. Maximum load:AC 250V/10A,DC30V/10A

2. SMD optocoupler isolation,strong driving ability,stable performance; trigger current 5mA

3. the module voltage 5V

4. each channel module can be set high or low triggered by jumper

5. fault-tolerant design,even if the control line is broken,the relay will not operate

6. power indicator (green),4 relay state indicator (red)

7. interface design user-friendly,all interfaces are available through the wiring terminal direct connection leads,very convenient

Module Port:

1. DC+: DC power supply positive

2. DC-:   DC power supply negative

3. IN1:   Channel 1 signal trigger terminal

4. IN2:   Channel 2 signal trigger terminal

5. IN3 :    Channel 3 signal trigger terminal

6. IN4:   Channel 4 signal trigger terminal

Relay Output:

1. NC1:     Channel 1 relay normally closed pin.

2. COM1:  Channel 1 relay common pin.

3. NO1:     Channel 1 relay normally opened pin.

4. NC2:     Channel 2 relay normally closed pin.

5. COM2:  Channel 2 relay common pin.

6. NO2:     Channel 2 relay normally opened pin.

7. NC3 :      Channel 2 relay normally closed pin.

8. COM3:  Channel 2 relay common pin.

9. NO3:     Channel 2 relay normally opened pin.

10. NC4 :      Channel 2 relay normally closed pin.

11. COM4:  Channel 2 relay common pin.

12. NO4:     Channel 2 relay normally opened pin.

High And Low Level Trigger Option:

1. S1:   It is option switch for channel 1 relay.

2. S2:   It is option switch for channel 2 relay.

3. S3 :    It is option switch for channel 3 relay.

4. S4:   It is option switch for channel 4 relay.

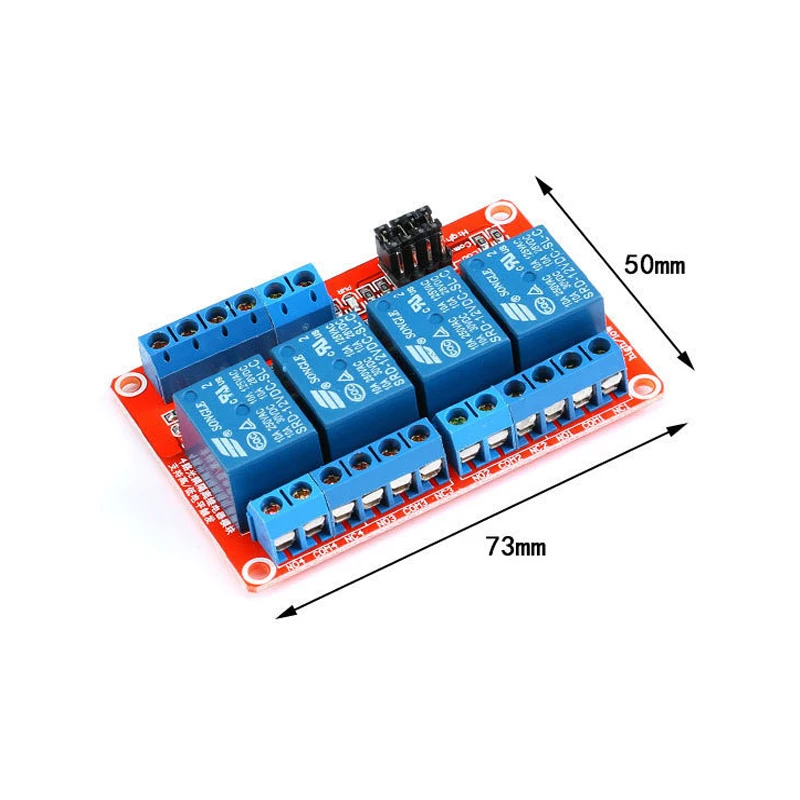

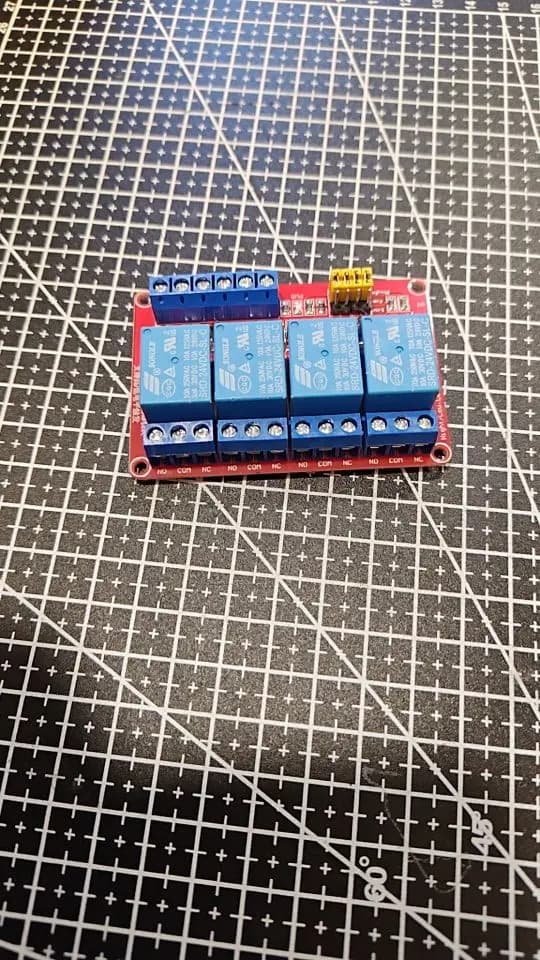

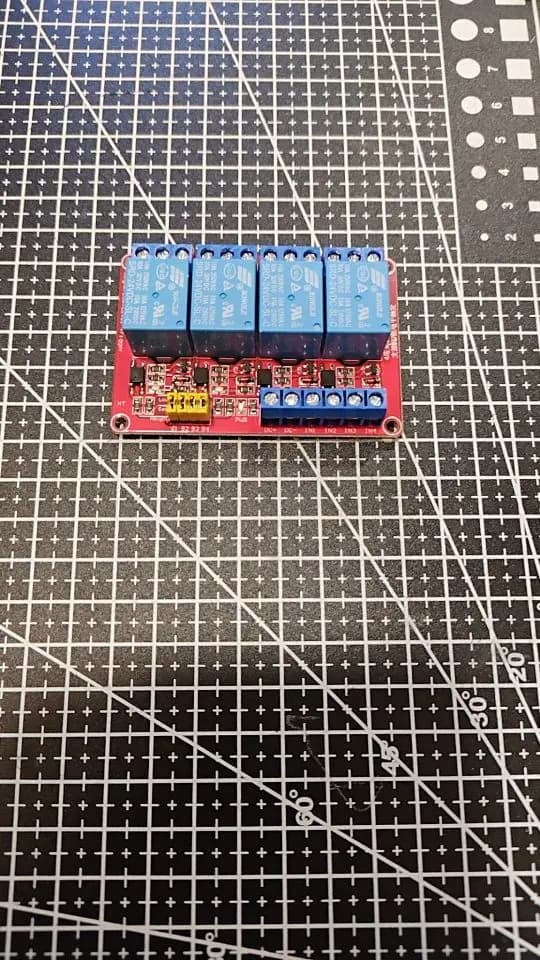

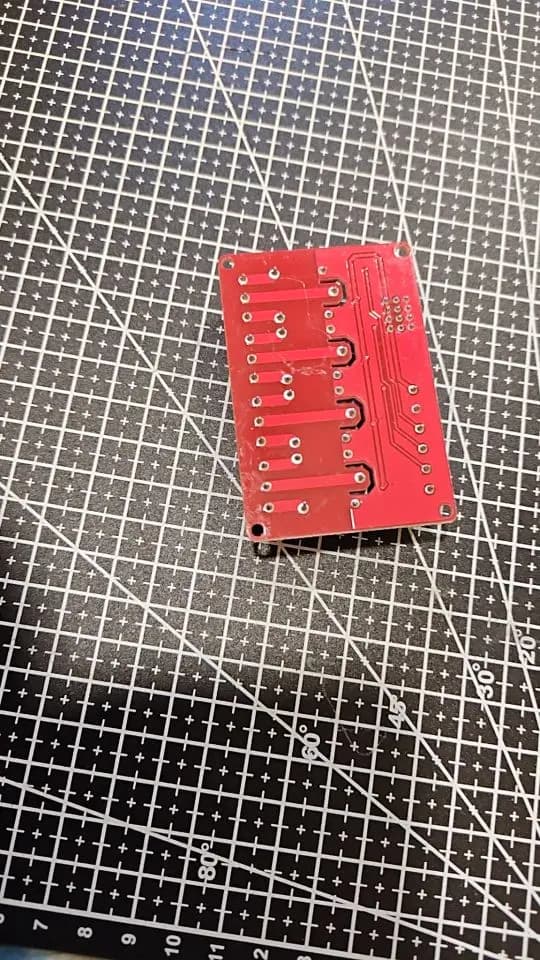

4 Channel Relay Module with Optocoupler

 Description:

1. Maximum load:AC 250V/10A,DC30V/10A

2. SMD optocoupler isolation,strong driving ability,stable performance; trigger current 5mA

3. the module voltage 5V

4. each channel module can be set high or low triggered by jumper

5. fault-tolerant design,even if the control line is broken,the relay will not operate

6. power indicator (green),4 relay state indicator (red)

7. interface design user-friendly,all interfaces are available through the wiring terminal direct connection leads,very convenient

Module Port:

1. DC+: DC power supply positive

2. DC-:   DC power supply negative

3. IN1:   Channel 1 signal trigger terminal

4. IN2:   Channel 2 signal trigger terminal

5. IN3 :    Channel 3 signal trigger terminal

6. IN4:   Channel 4 signal trigger terminal

Relay Output:

1. NC1:     Channel 1 relay normally closed pin.

2. COM1:  Channel 1 relay common pin.

3. NO1:     Channel 1 relay normally opened pin.

4. NC2:     Channel 2 relay normally closed pin.

5. COM2:  Channel 2 relay common pin.

6. NO2:     Channel 2 relay normally opened pin.

7. NC3 :      Channel 2 relay normally closed pin.

8. COM3:  Channel 2 relay common pin.

9. NO3:     Channel 2 relay normally opened pin.

10. NC4 :      Channel 2 relay normally closed pin.

11. COM4:  Channel 2 relay common pin.

12. NO4:     Channel 2 relay normally opened pin.

High And Low Level Trigger Option:

1. S1:   It is option switch for channel 1 relay.

2. S2:   It is option switch for channel 2 relay.

3. S3 :    It is option switch for channel 3 relay.

4. S4:   It is option switch for channel 4 relay.

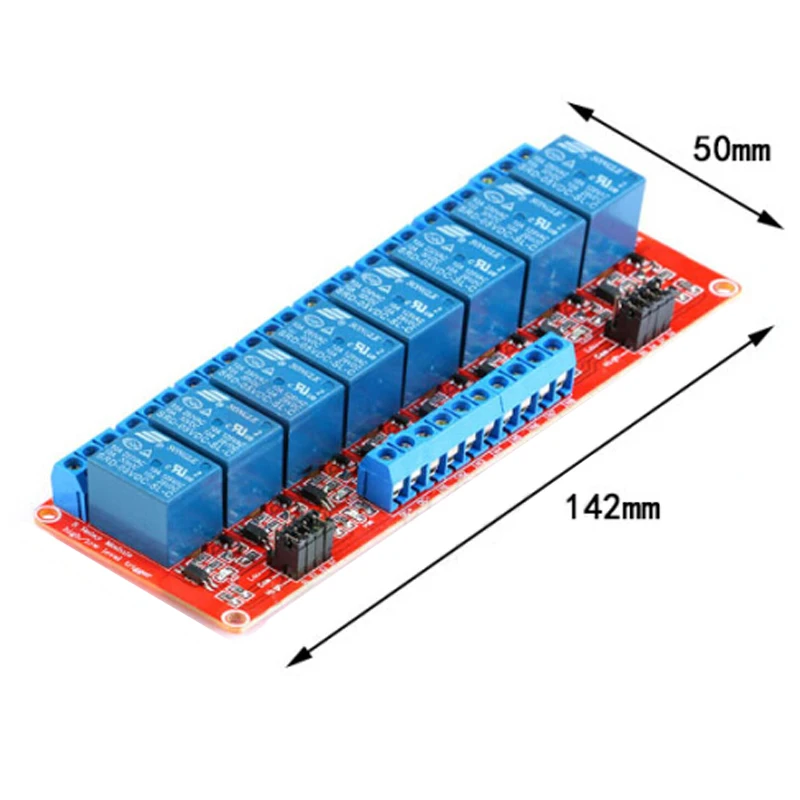

8 Channel Relay Module with Optocoupler

Features:

1.Dual trigger design,use a dedicated two-way driver IC.

2.Strong resist interference,use diode continued current to protect it.

3.The relay contact part adopts double cloth line for large current,safe and reliable.

4.The input and output are 5.08mm wiring terminals,wiring is more convenient,suitable for PLC control.

5.Input terminals can be arbitrarily set high and low level,the control mode is more flexible.

6.Equipped with fixing screw hole,easy to install.

7.Each way module can be set high or low triggered by jumper.

Specifications:

Material: Metal

Mounting bolts holes: 4

Holes diameter: 3mm

Voltage: 5V

Maximum load : AC 250V/10A,DC 30V/10A

Interface:

VCC: Power end

GND: Ground strap

CTR1-CTR8: Signal input trigger

Outputs:

24 line interface,the interface can be directly connected to all leads,user-friendly.

NO1-NO8: normally open relay interfaces,relay before the vacant after the pull shorted with COM

COM1-COM8: Relay Common Interface

NC1-NC8: normally closed relay interface relay shorted with COM ago,after the pull- vacant
