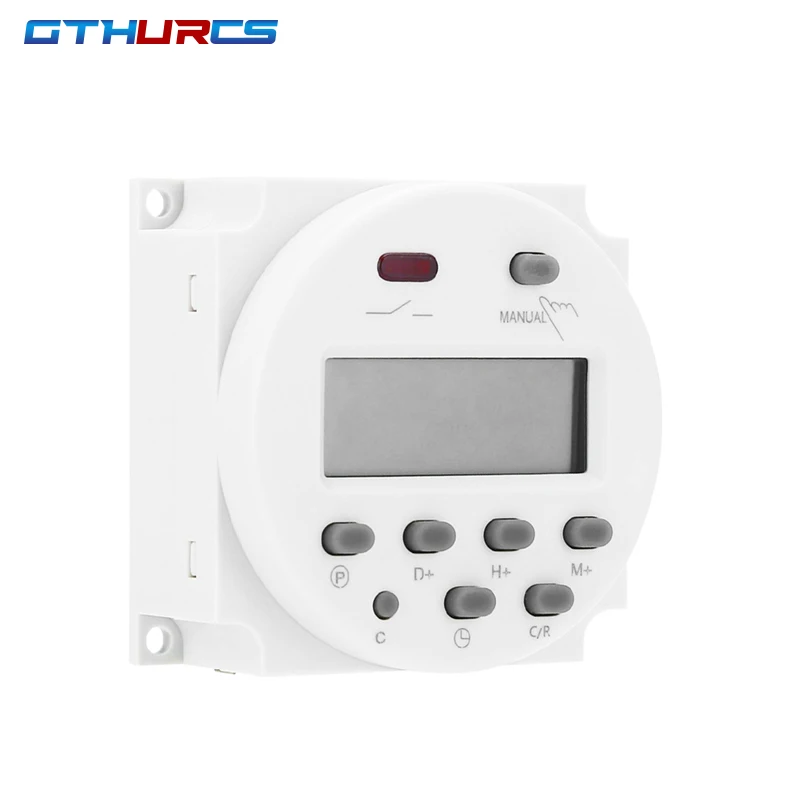

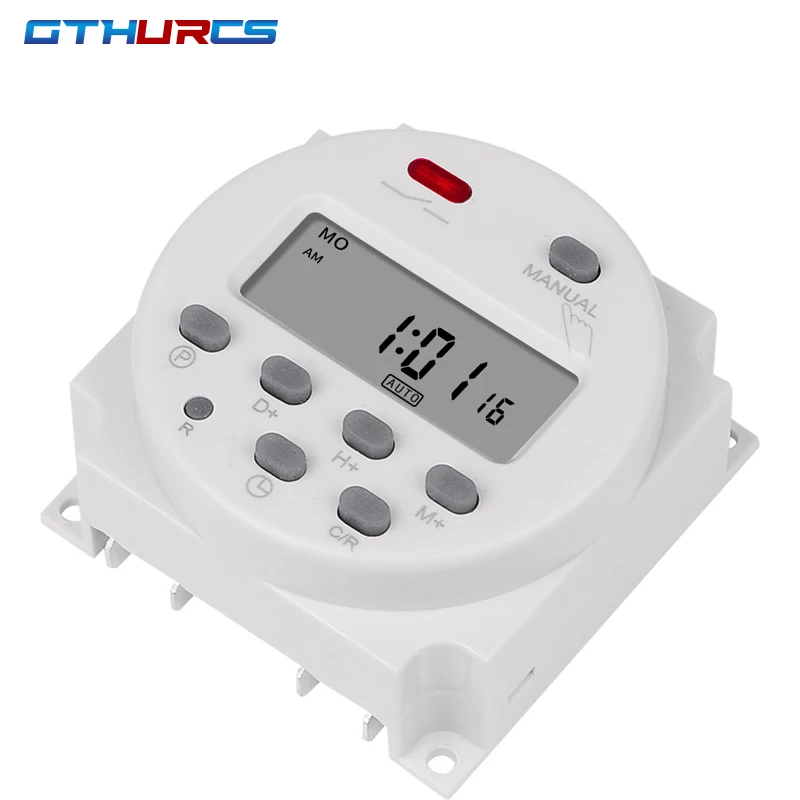

GTHURCS 220V 110V 24V 12V CN101A Timer Switch Digital LCD Power Timer Programmable Time Switch Relay 16A high quality CN101

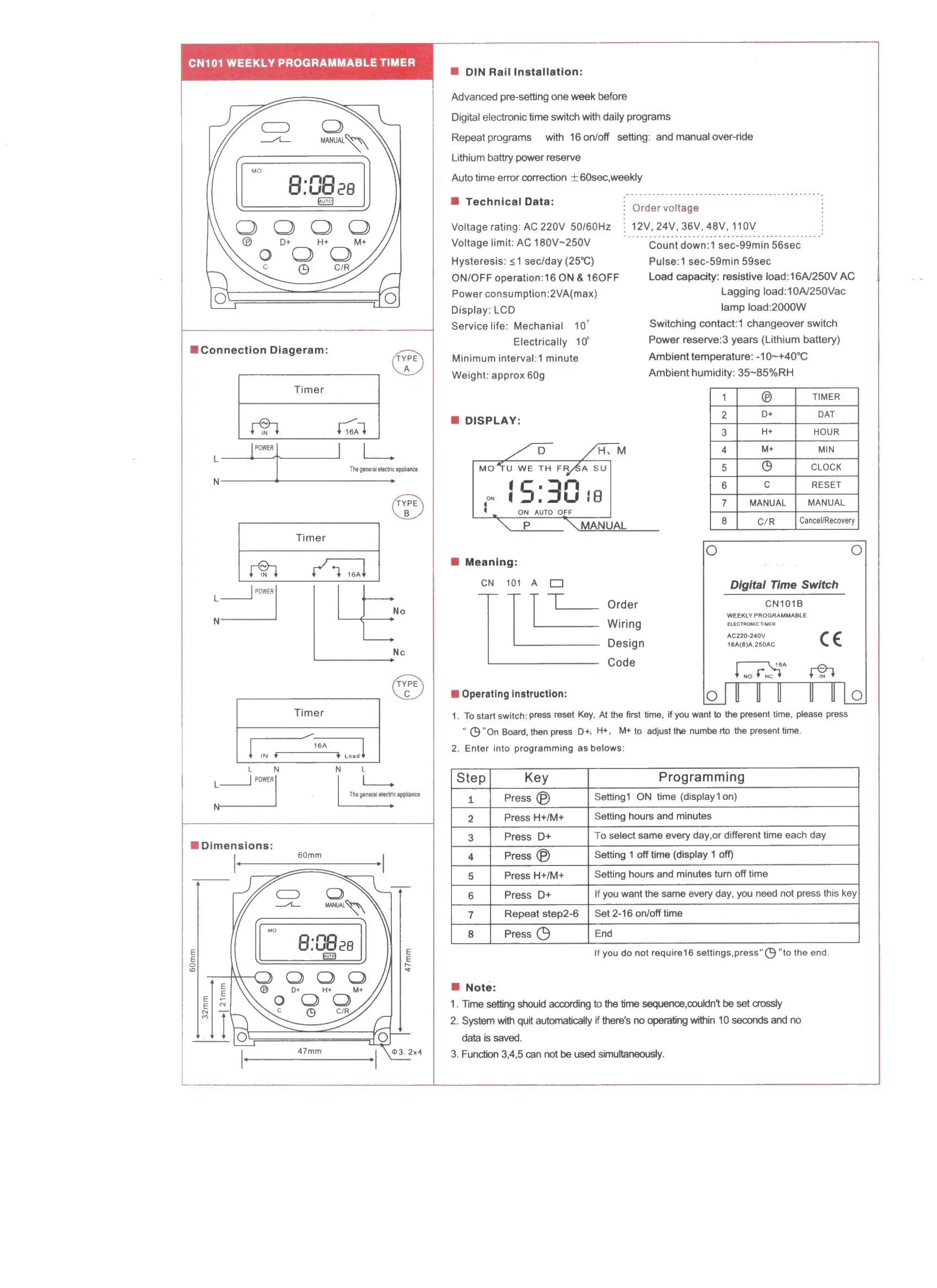

CN101A series timer MODULE Parameters

Programs:30 ON/OFF each week,15 combinations per week

Minimum interval: 1 Second (Press MANUAL)

Operating temperature：-10°C+40°C

Display: LCD

Power-off memory: 60 days

Timer range: 1min~168hr

Recharge battery: 1.2V 40mA

Average error: 1s/24h, 25°C

Usual steps

1. Press the C/R button 4 times to unlock the panel.

2. Calibrate the current time.

3. Set the opening and closing time.(28 Groups)

4. Make sure the switch is in AUTO mode.(Press the MANUAL button to switch modes)

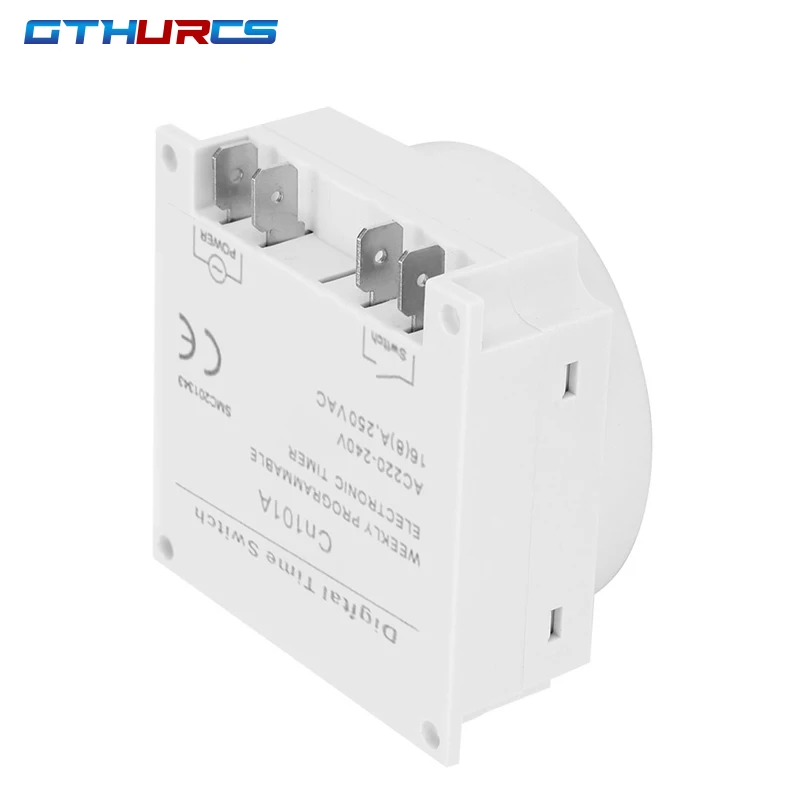

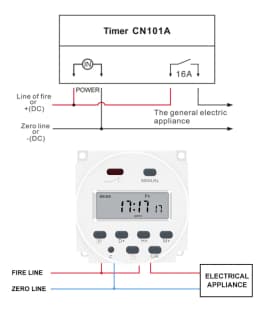

5. Connect the wires correctly.(CN101A is type A)

6. Starts to work.
