Mellow FLY Super ♾️ Pro Board 3+5 HV 8 Axis 32Bit 550MHz 2oz PCB High-speed For 3D Printer Motherboard RRF/Klipper Voron Vzbot

Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you a better overall user experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.

Description

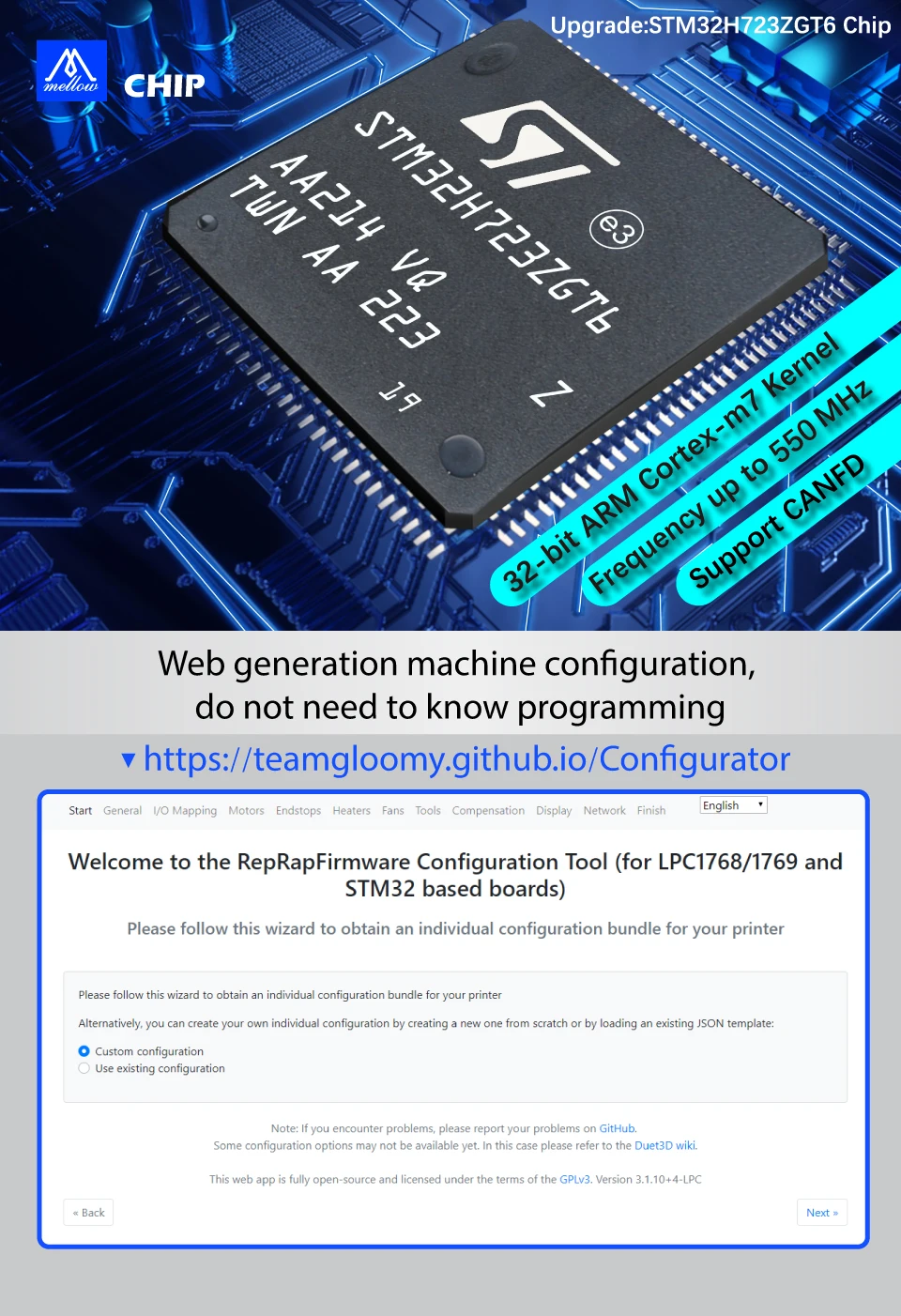

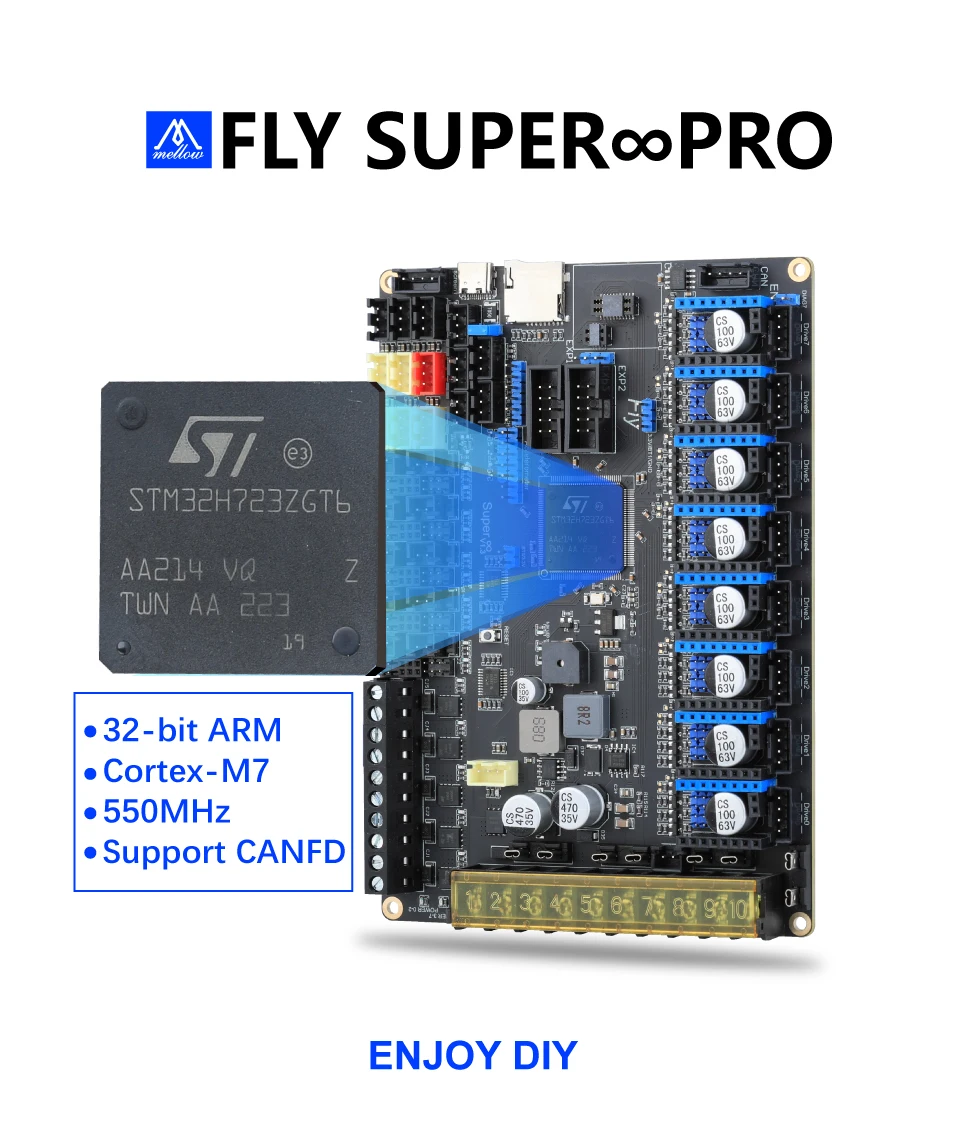

-32-bit ARM Cortex-M7 Kernel 550MHz, STM32H723ZGT6 Chip

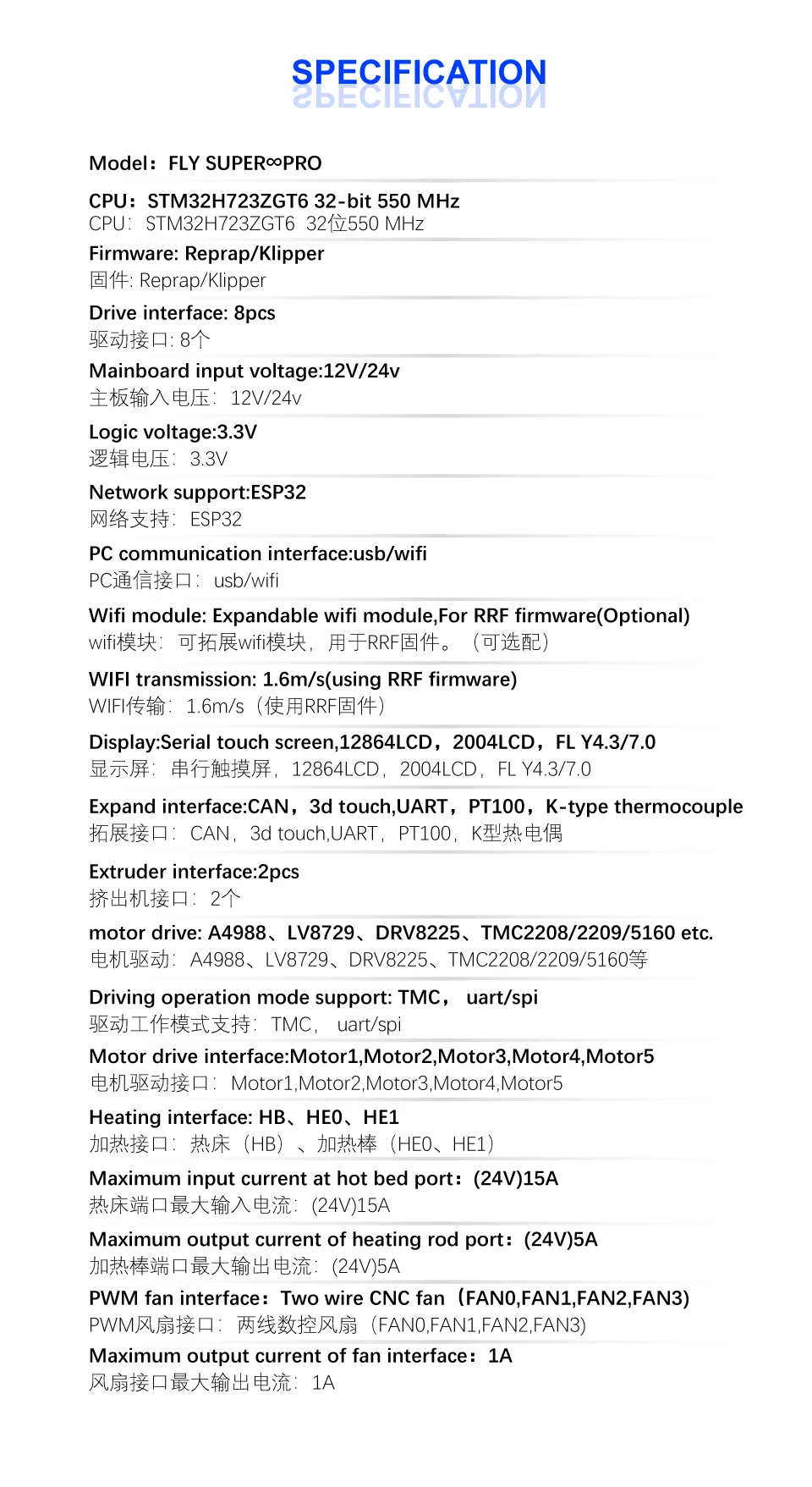

SPECIFICATION
-32-bit ARM Cortex-M7 Kernel 480MHz, STM32H723ZGT6 Chip

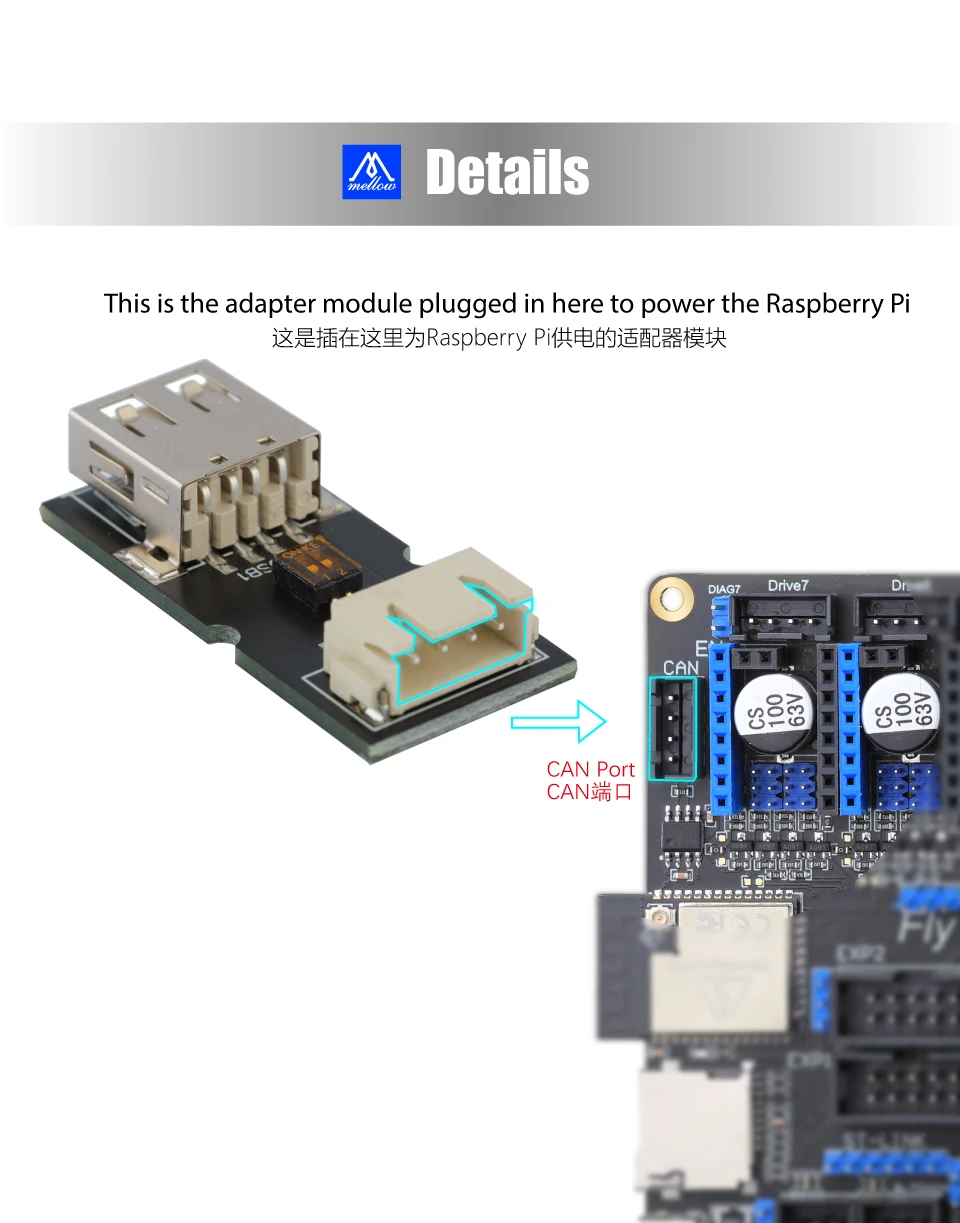

-Support CANFD

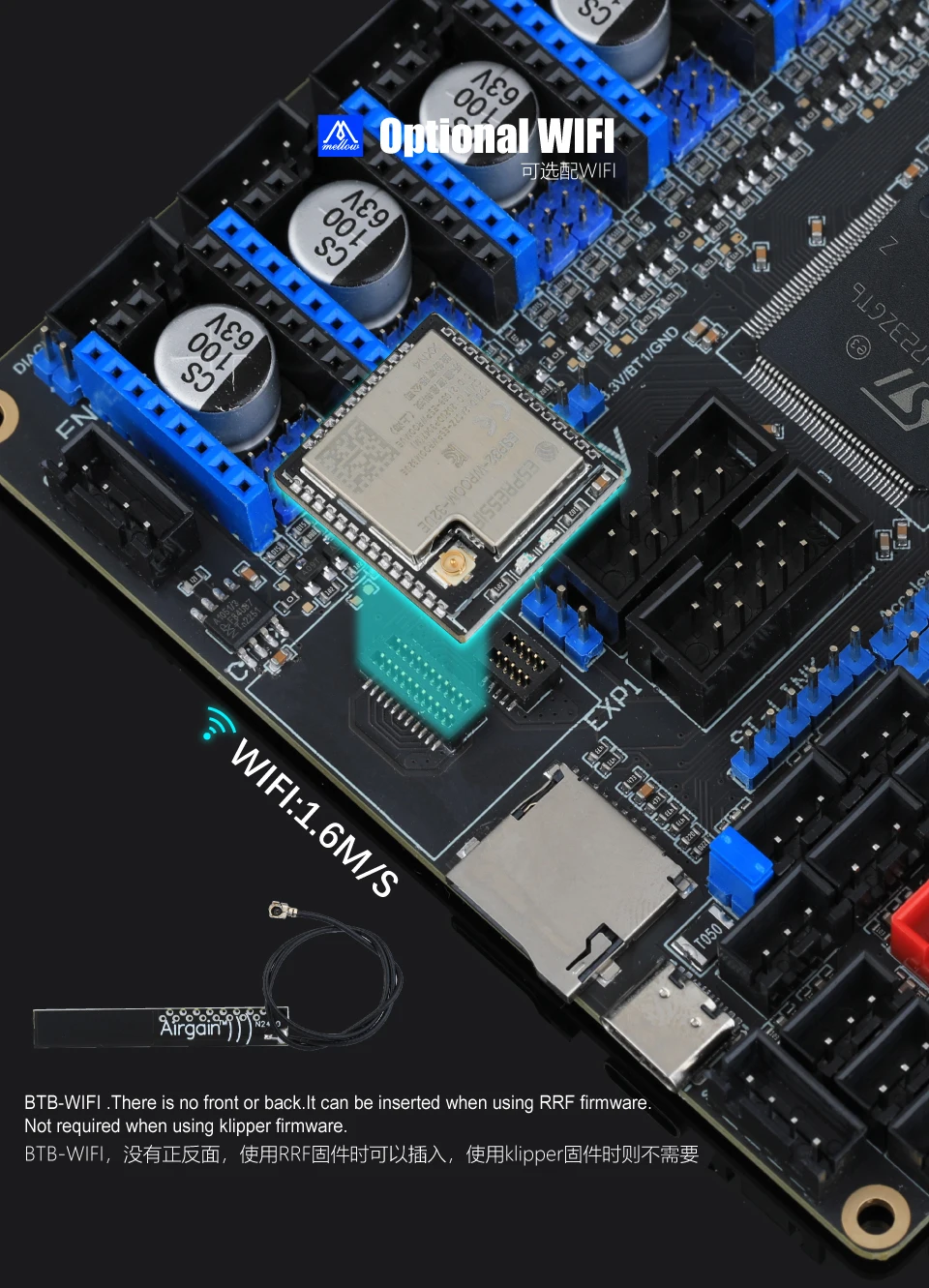

-Using repap firmware, you can use onboard WiFi and support 1.6m/s

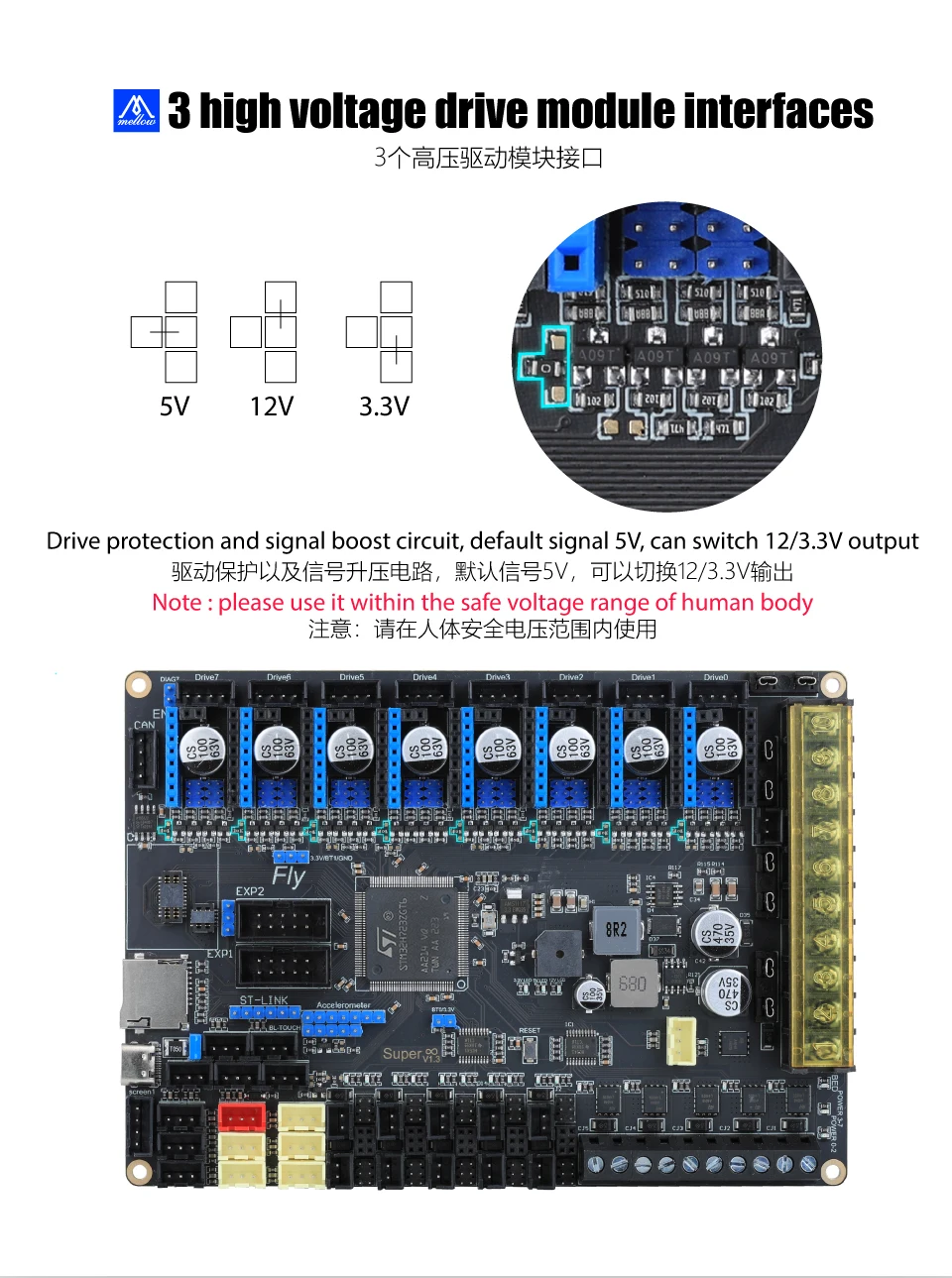

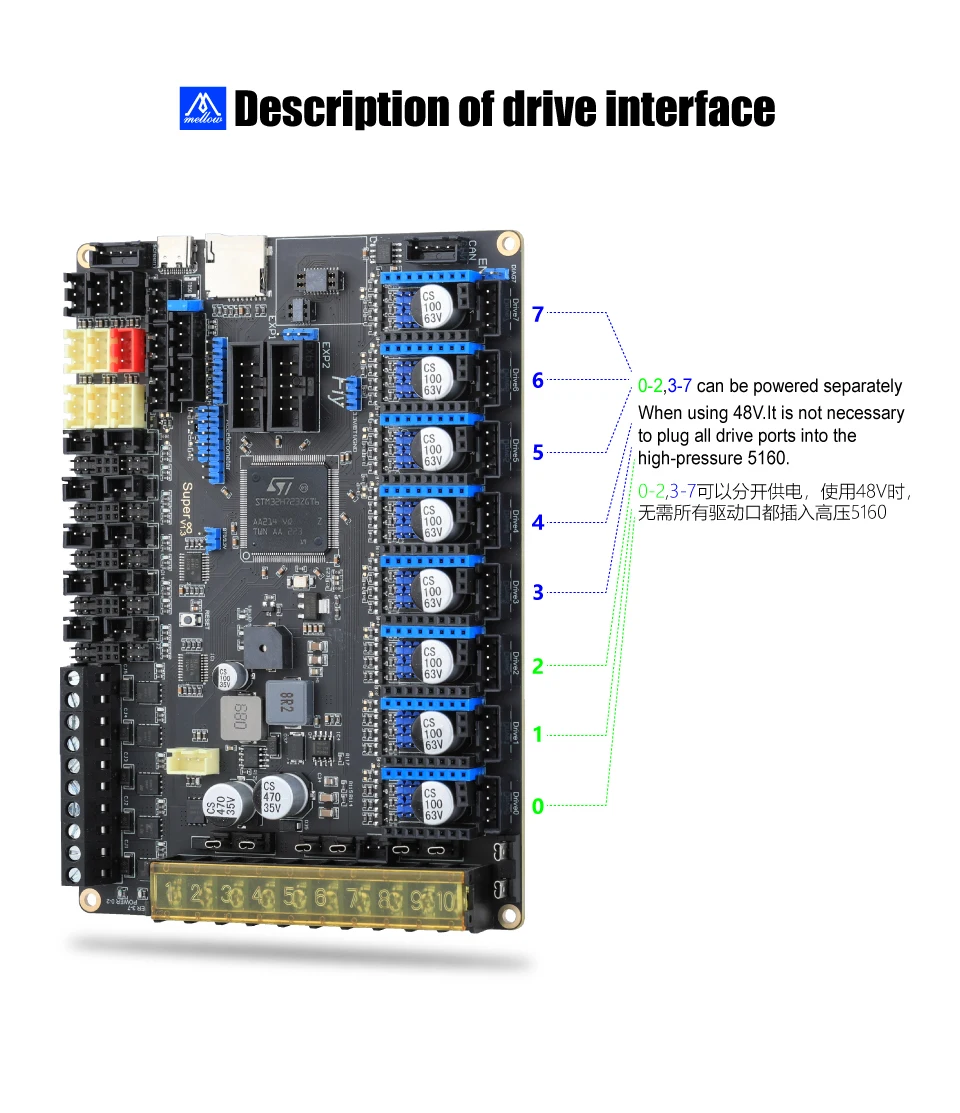

-Support 8 independent motor drives（support high voltage）, 5 extruders, 10 PWM fans

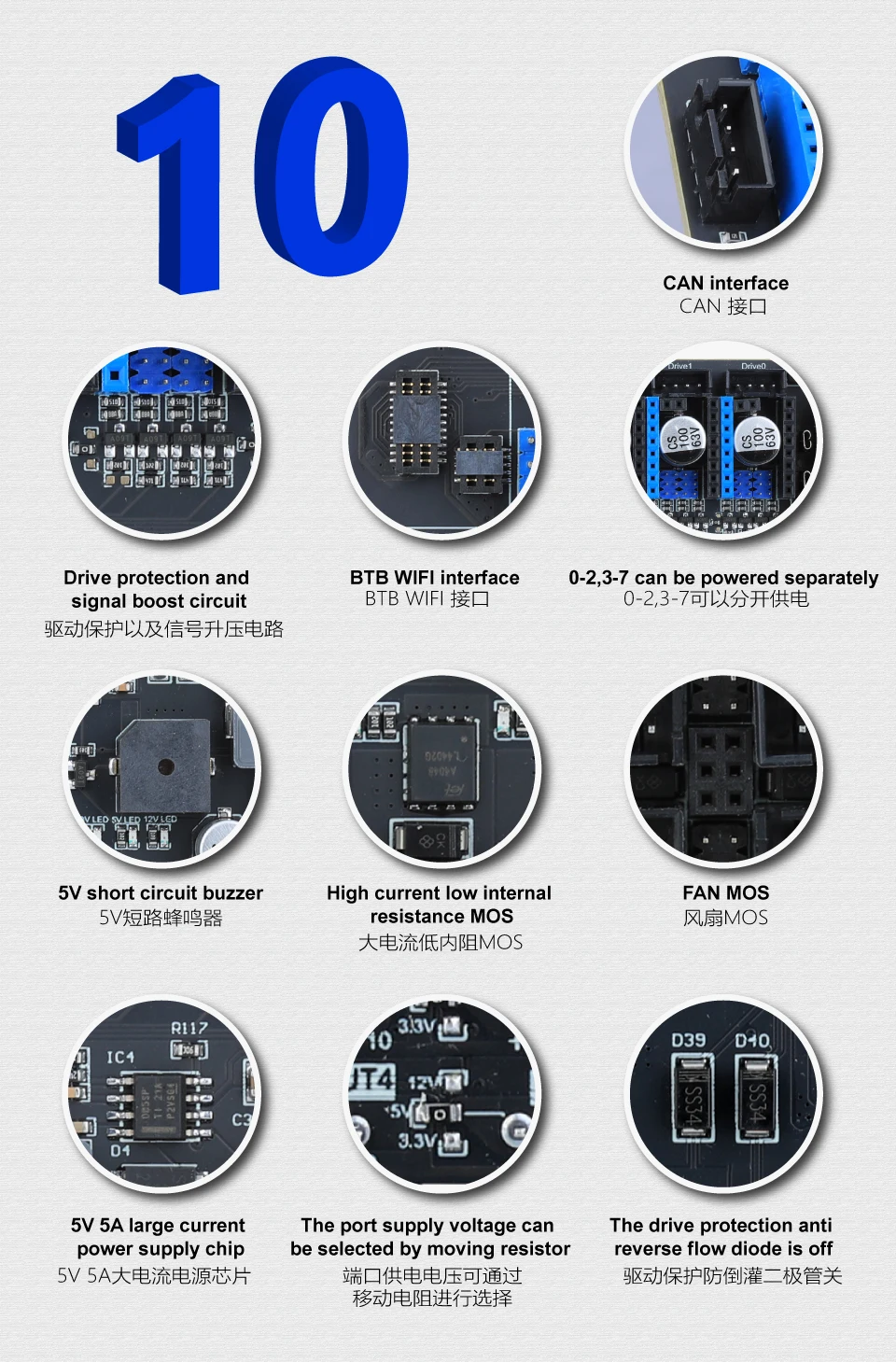

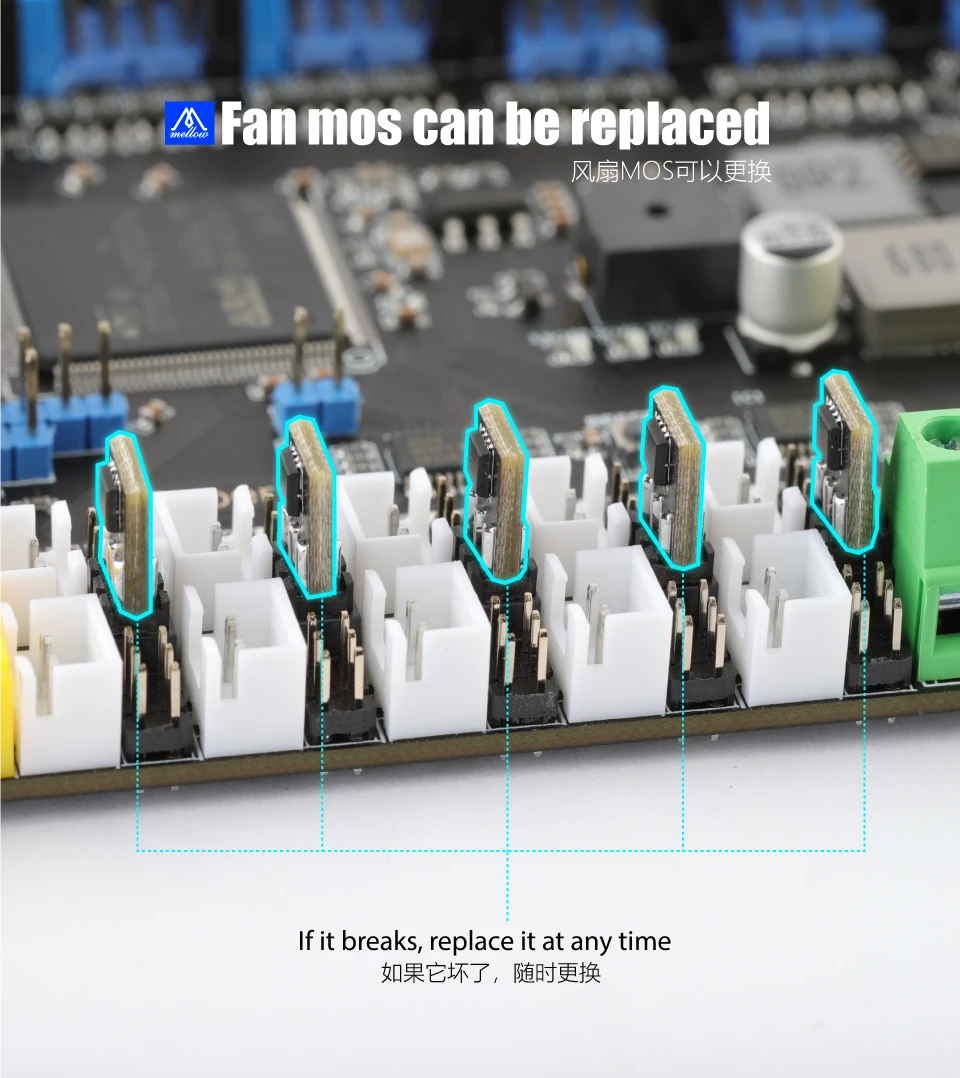

-The unique design of PWM Fan MOS board can be directly replaced in case of damage, reducing the difficulty of customer maintenance, and the two 2pin fan interfaces can support four pin PWM fan

Firmware:Reprap/Klipper
Driver support: A4988, LV8729, DRV8225, TMC2208 / 2209/5160etc.

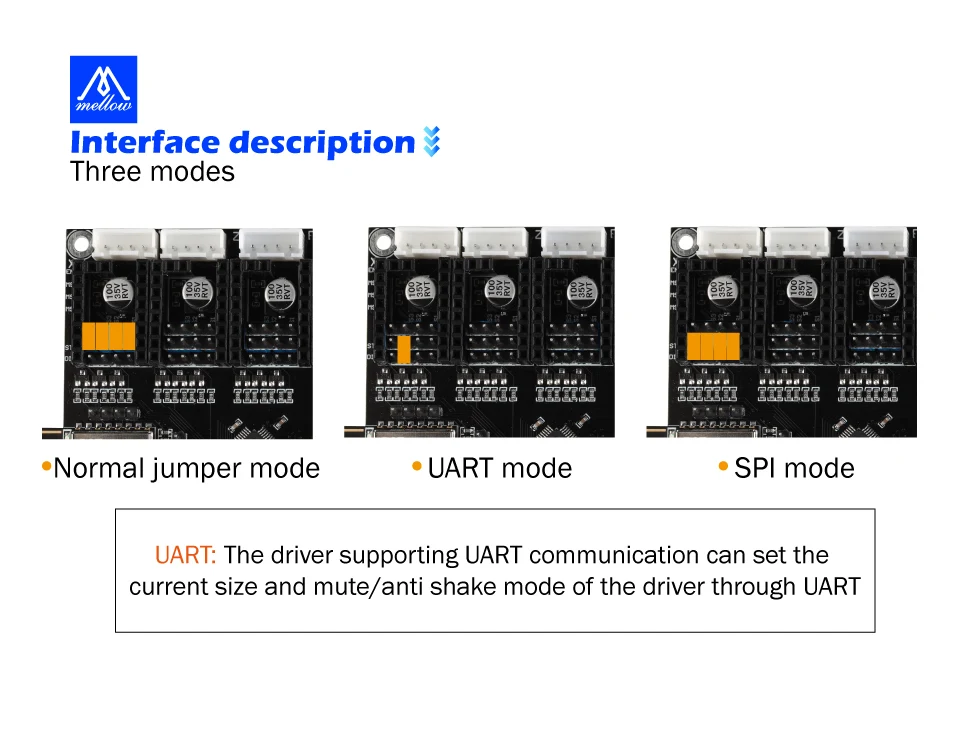

Drive mode support: TMC: UART / SPI
Display：Serial touch screen, 12864 LCD, 2004 LCD ,FLY 4.3/7.0 V1

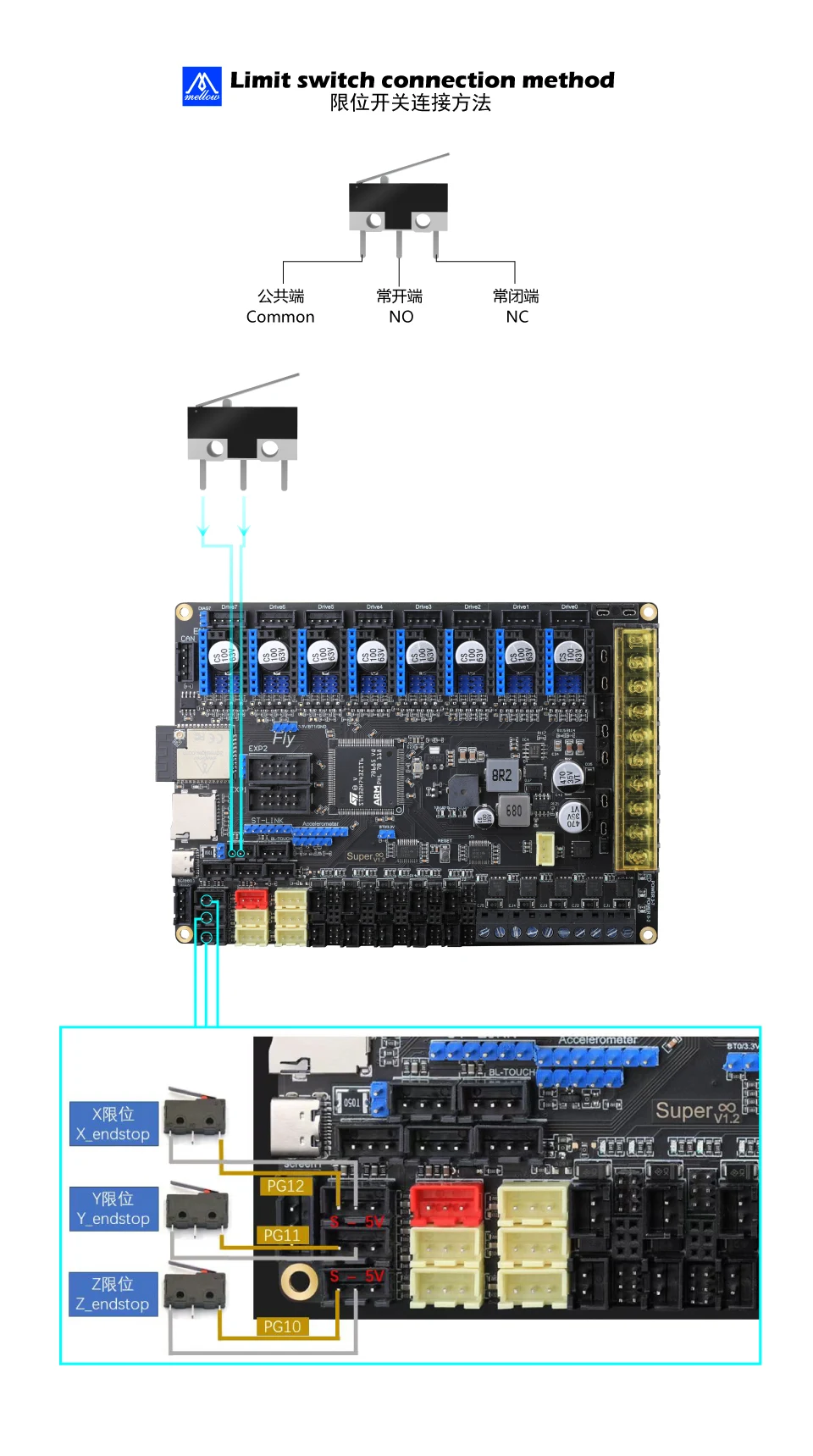

Support automatic bed leveling sensor: BLTouch

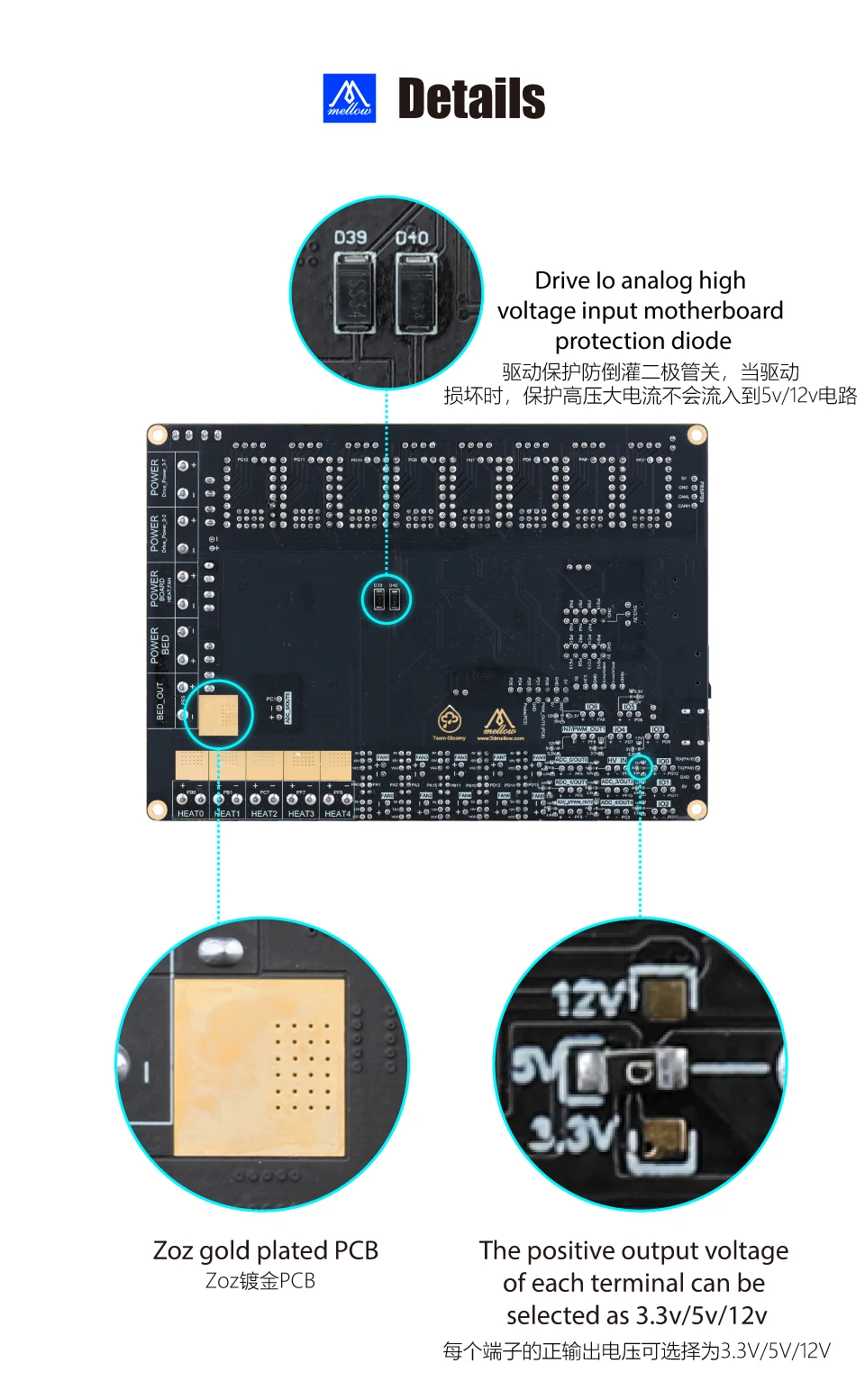

Optional limit switch power supply: 5V / 12V / 24V

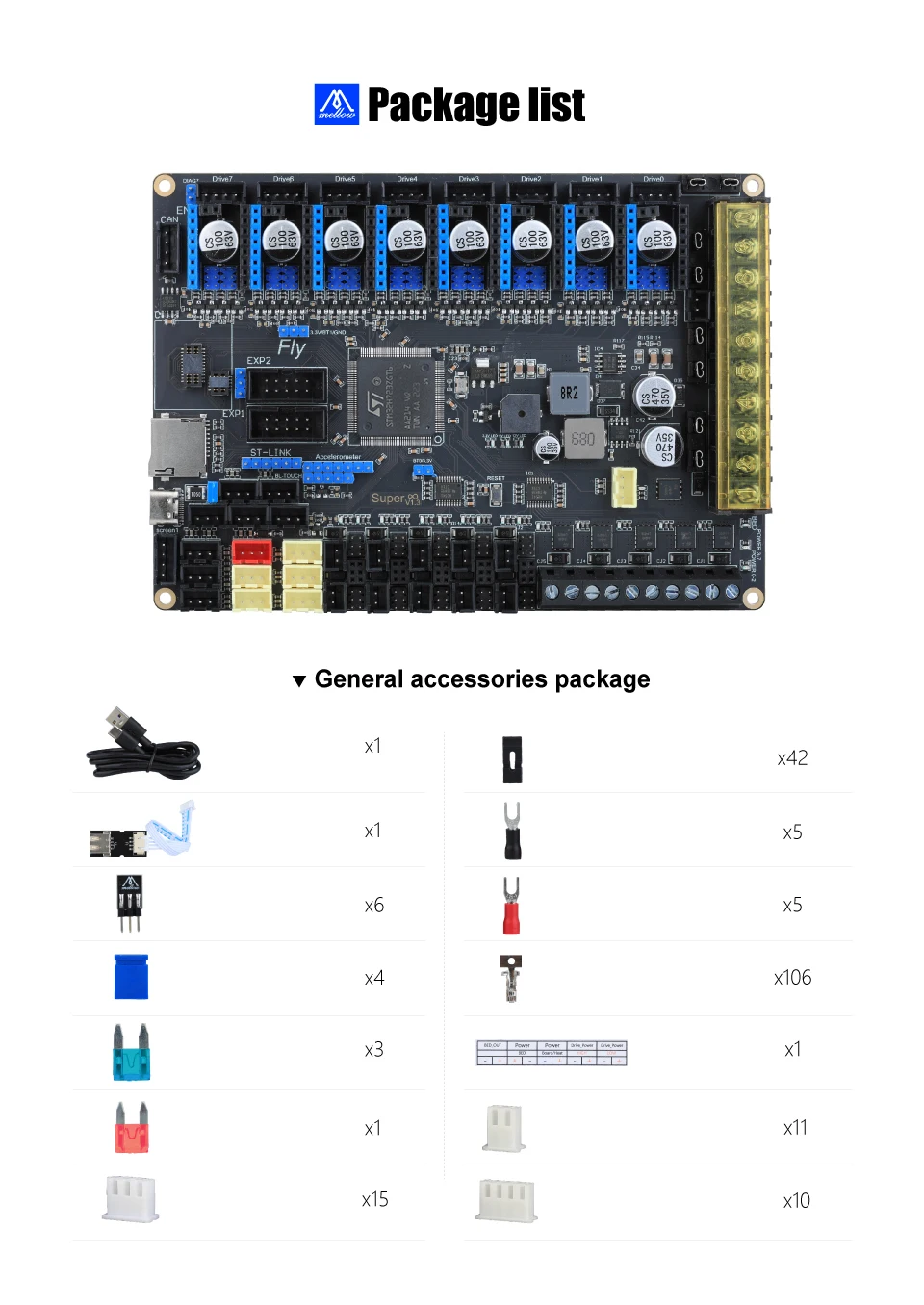

Packege included

​1*Super ∞ PRO HV Board

​Klipper firmware refer to this URL

mellow.klipper.cn

Web generation machine configuration, do not need to know programming

https://teamgloomy.github.io/Configurator
