THINKCAR Thinktool Mini OBD2 Scanner Professional Full System Auto Scanner 28 Reset All Software Free Update Diagnostic Tools

Why You Need THINKTOOL Mini

"Thinktool mini as the Highest-level FULL OBD II Diagnostic Device For DIY users supported include Code Reading/Clearing data stream,Actuation Test ,Special Functions etc
1.Free system-wide code reading, code clearing, data streaming and upgrades for all models.
2.The full reset function is free to use (currently 16 and will be increased to 26-28 later).
3.After subscribing to the software, the whole system can be diagnosed with full functions (action test, special function, cding can be carried out).
4.Android system can be upgraded online.
5.The whole system diagnoses more than 93 automobile brands.
6.Diagnosis covers all models that support OBD protocol after 1996.
7.Equipped with VIN code intelligent identification models.
8.THINKCAR series design, dustproof, shockproof, easy to store
9.5.99-inch display is convenient for you to diagnose the car in real time
10.2G RAM/ 32G ROM,Support Bluetooth and WiFi connection
11.Pay for one Car model software can enjoy Free Upgrade 1 year the full system ,Such as :ECU Coding/ Action Test and other Special Function

Support All System Diagnostic:

"With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ECU information to facilitate the vehicle diagnosis.The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.
* Examinate your car like a professional mechanical technician
*Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions;
*Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;
*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;
*The active test used to access vehicle-specific subsystem and component tests."

28 Maintenance Resets Services For All Cars Lifetime Use and Upgrade

1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change
This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Reset
a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.

25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

Free Full OBDII Functions:

"*-Read extensive current, pending and permanent codes in OBD system quickly
*-Clear detected fault codes and turn off the Check Engine Light efficiently
*-View graphical live data of vehicle's computer module(s) for easy analyses
*-View the vehicle's operating parameters at the moment a DTC is detected
*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
*-Read the results of on-board diagnostic monitoring tests for specific components/systems
*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system"

Support Multi-language

English, French, German, Spanish, Italian, Portuguese, Japanese, Russian

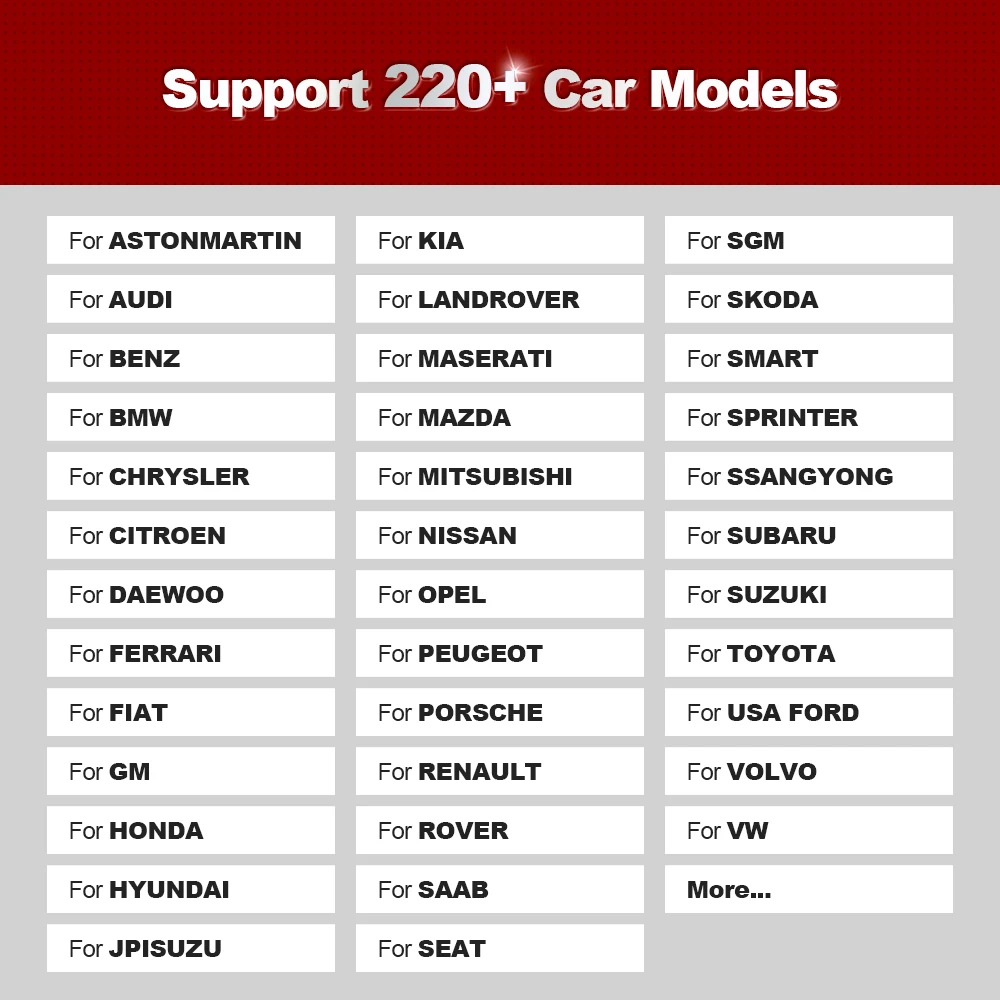

Cover Up to 115 Major Vehicle Manufacturers, more models are updating:

Free Full OBDII Functions:

*-Read extensive current, pending and permanent codes in OBD system quickly

*-Clear detected fault codes and turn off the Check Engine Light efficiently

*-View graphical live data of vehicle's computer module(s) for easy analyses

*-View the vehicle's operating parameters at the moment a DTC is detected

*-Read I/M readiness status to have a vehicle inspected for state emissions compliance

*-Perform O2 sensor test to check fuel efficiency and vehicle emissions

*-Read the results of on-board diagnostic monitoring tests for specific components/systems

*-Retrieve the vehicle information of VIN, CINs, and CVNs completely

*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

Support to ECU Coding& Active Test(this function need to pay $49/year/brand)

1.Support to ECU Coding

The Coding function is used to re-flash the vehicle control modules.It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts;Provide solutions for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts etc.;Brake the limitations and restrictions; make full use of the car hidden features, like change the chimes on car, set how many times the one-touch signal flickers for one touch, remember settings for Start/Stop systems, and more.

2.Support Active Test (Actuation Test)

Uses the ThinkDiag App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness:
[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

Upgraded TPMS Functions in 2022!!! Support both MUCAR&THINKCAR TPMS relearn tools and sensors!

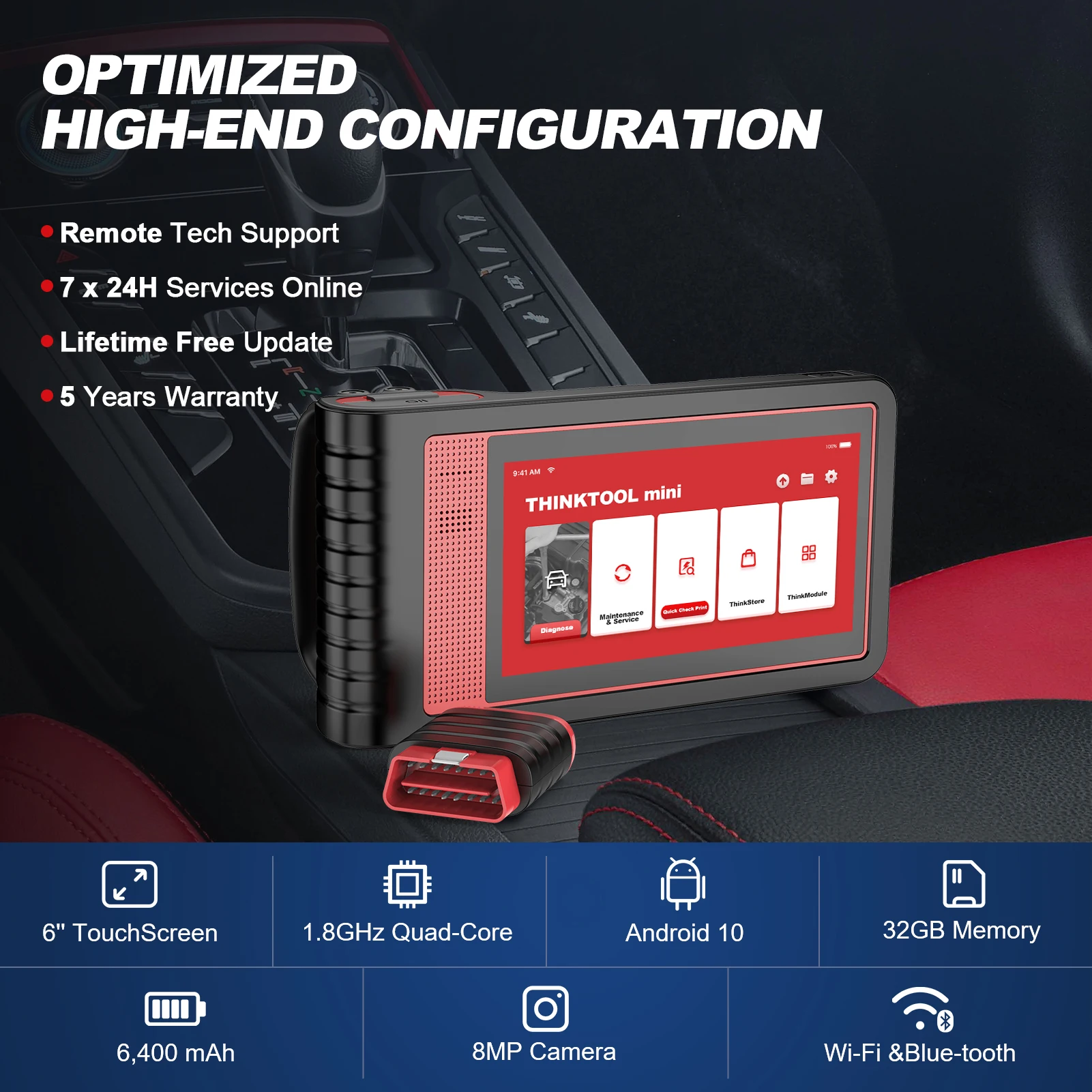

Product Parameters:

"Display Screen ：5.99-Inch/TFT(IPS)
Connection :Wi-Fi/Bluetooth
RAM:2G
ROM:32G
Working Temperature : 32℉~122℉
Storage Temperature: -4℉~144℉"

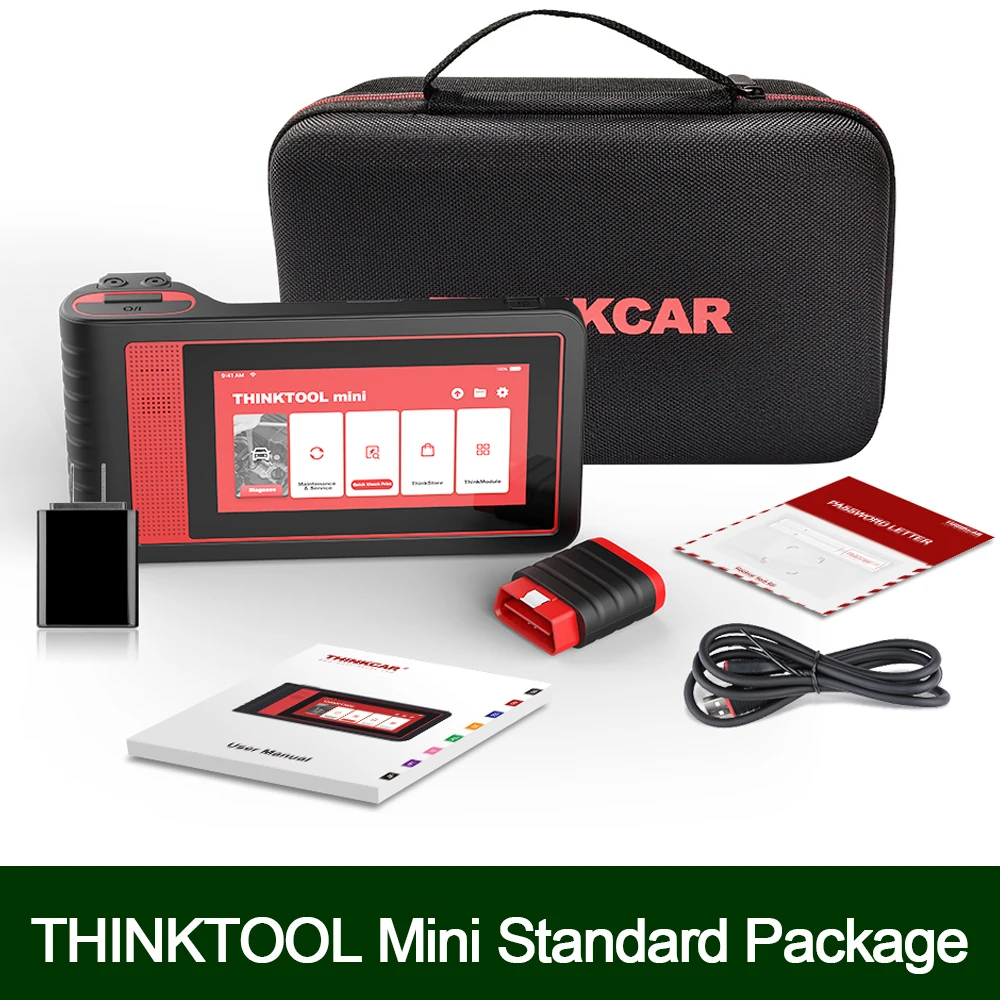

Packing List:

"1*Thinktool mini Host
1*Diagnostic dongle
1*Charging cable
1*power adapter"
