Motorcycle Gear Indicator For Honda CBR 600 F4i CBR600F4i CBR600 F4i CB600F Hornet CB 600 F 400 1100 SF CB 900 F Hornet CBR900RR

▶Description:

Product condition: 100% brand new

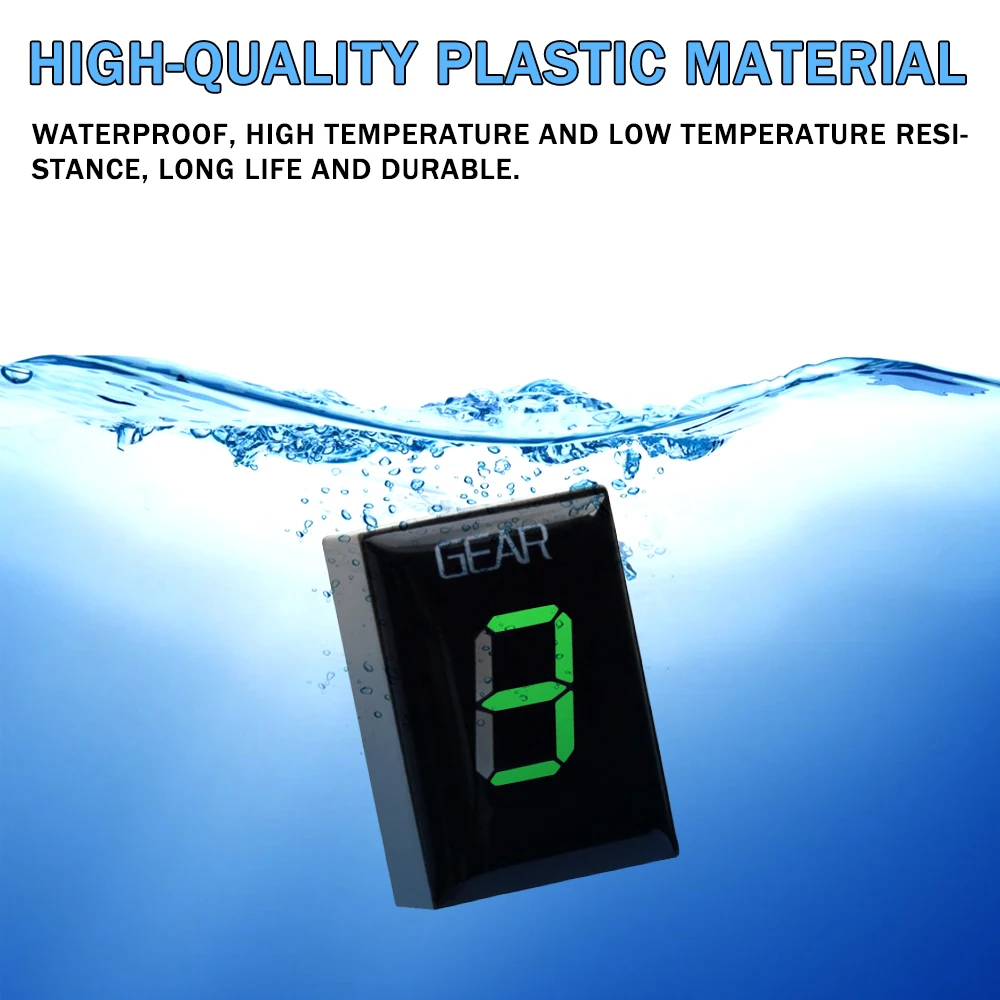

Product material: LED and ABS Plastic

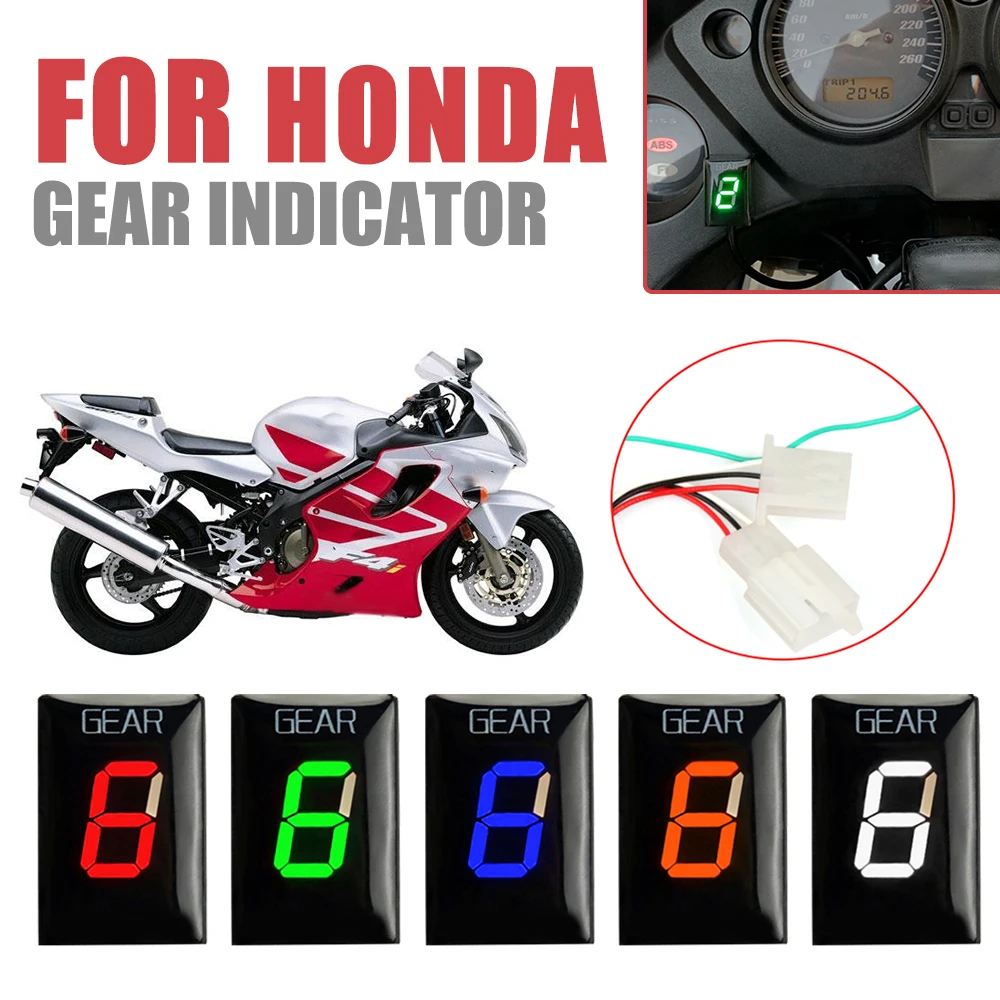

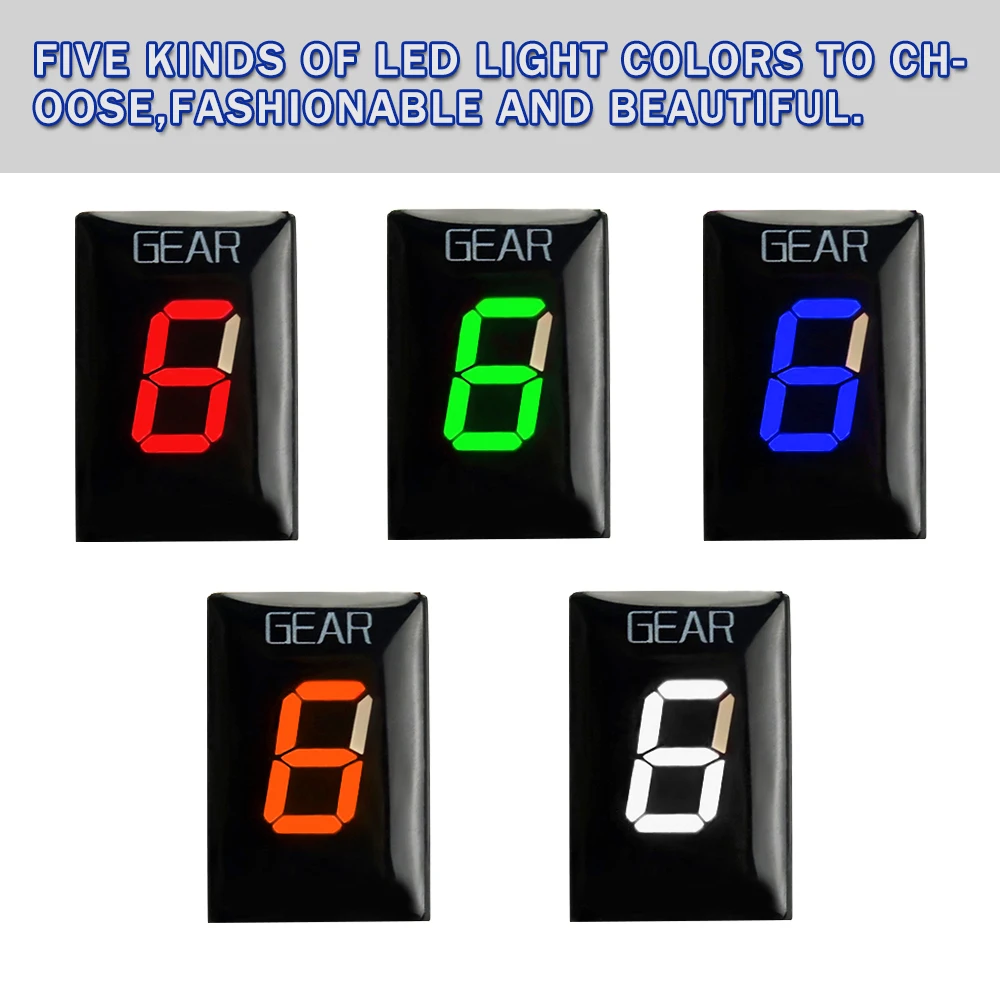

Color: blue, green, orange, red and white

Quantity: one piece

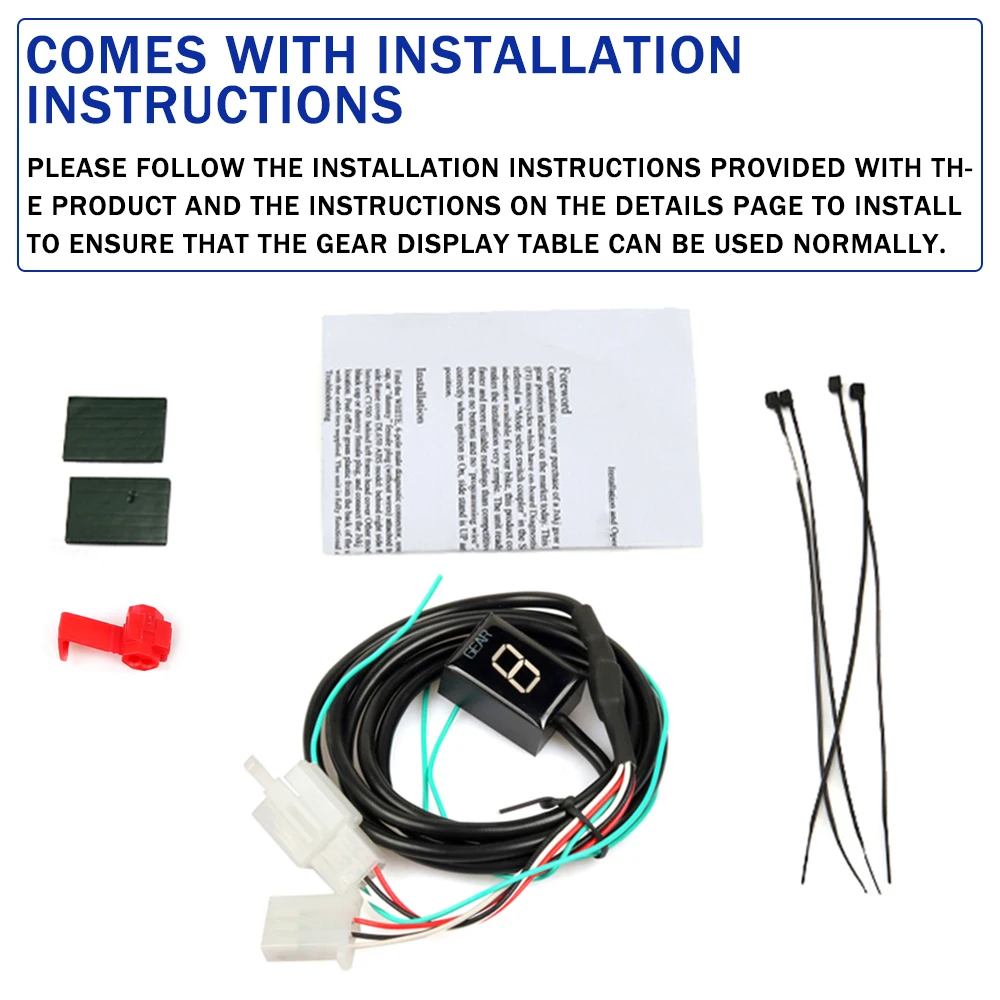

Easy to install, including installation instructions.

▶Fitment:

For HONDA CB400 (2001 - 2005)

For HONDA CB400SF (1999 - 2005)

For HONDA CB600F (2003- 2006)

For HONDA CB600S (2000 - 2002)

For HONDA CB900F Hornet (2002 - 2008)

For HONDA CB1100SF (1999 - 2004)

For HONDA CB1300SF (1998 - 2002)

For HONDA CBF500 (2004 - 2008)

For HONDA CBF600 (2004 - 2007)

For HONDA CbR150 (2015 Modify plug)

For HONDA CBR600F Hornet (1995 - 2010)

For HONDA CBR600F3 (1995 - 1998)

For HONDA CBR600F4 (1999 - 2000)

For HONDA CBR600F4i (2001 - 2006)

For HONDA CBR600FS (2001 - 2003)

For HONDA CBR900RR (1994 - 2003)

For HONDA CBR919RR (1996 - 1999)

For HONDA CBR929RR (2000 - 2001)

For HONDA CBR954RR (2002 - 2003)

For HONDA CBR1100XX (1996 - 2008)

For HONDA 599 Hornet (2003 - 2006)

For HONDA 919 Hornet (2002 - 2008)

For HONDA X 4 (1997 - 2003)

For HONDA X 11 (1999 - 2004)

For HONDA XL 1000V (1999 - 2002)

For HONDA XL125V Varadero (2001 - 2006)

For HONDA VRX 1800 (2002 - 2004)

For HONDA VFR 750 (1994 - 1997)

For HONDA VTX 1300 (2003 - 2011)

For HONDA VT125C Shadow (1999 - 2009)

For HONDA VT 750S (2010 - 2014)

For HONDA VTR1000 SP1/SP2 (2000 - 2006)

For HONDA VTR1000F FireStorm/SuperHawk (1997 - 2005)

For HONDA Valkyrie Rune (2004 - 2006)

For HONDA RVT1000RR RC51 (2000 - 2006)

For HONDA ST 1300 Pan European (2002 - 2007)

For HONDA GL 1800 Gold Wing (2001 - 2004)

For HONDA NRX 1800 (2004 - 2006)

(If you encounter any questions, please be sure to contact me first, please do not leave negative comments first, I very much hope to answer your questions, thank you)

▲Feature:

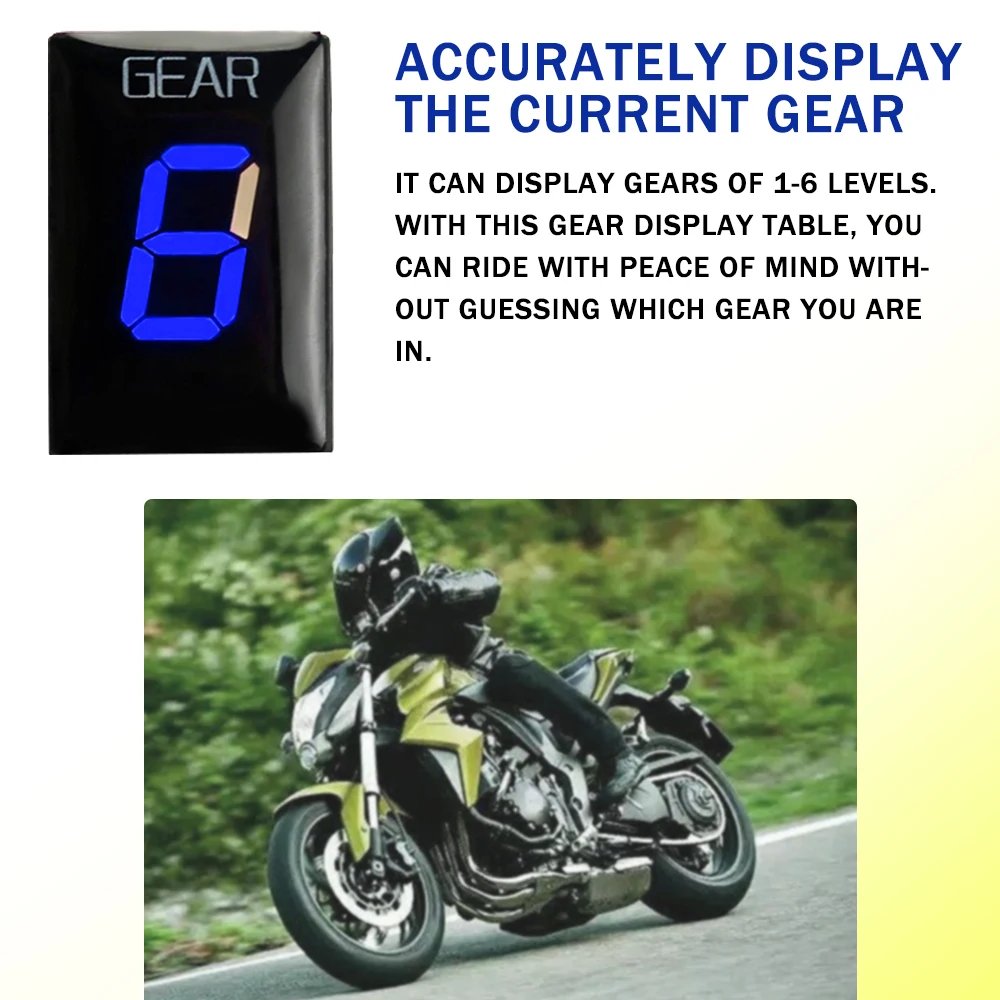

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

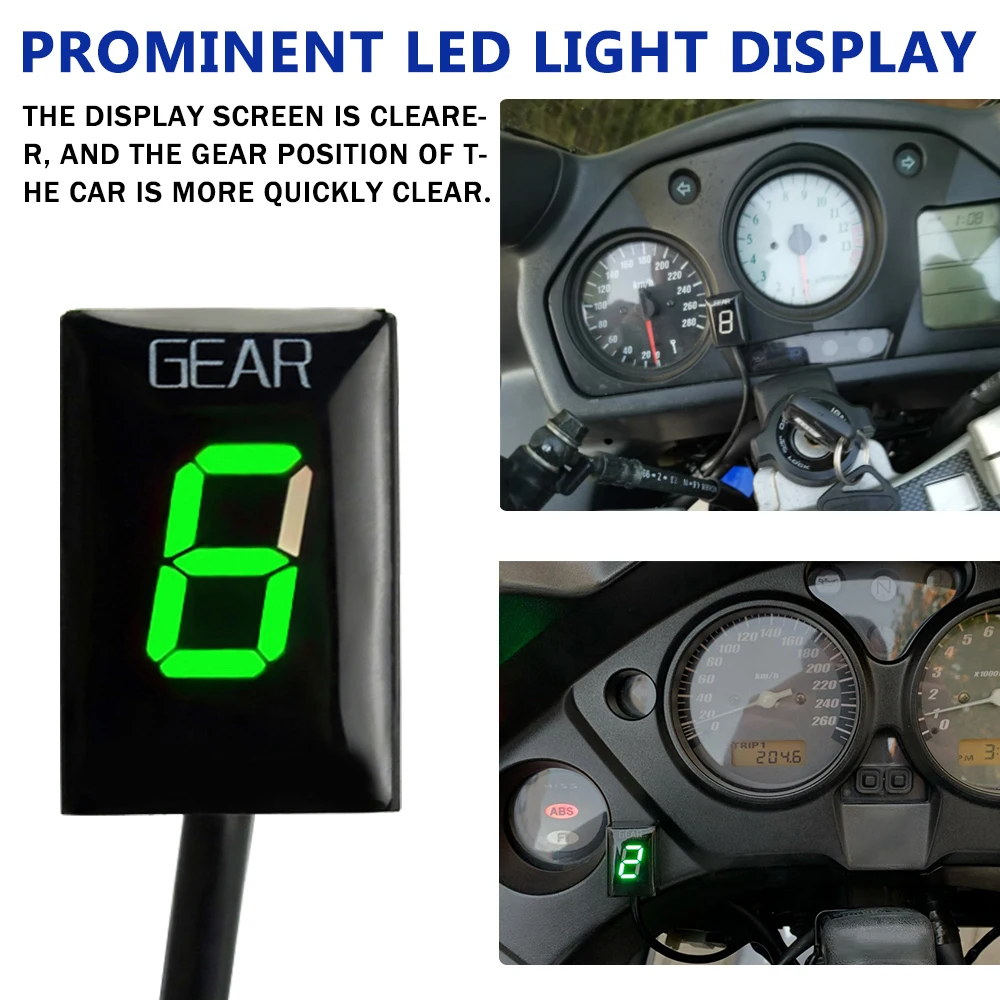

Display can be mounted anywhere

▲Installation:

Find the RED,4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.

▲Steps:

-You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.

-Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)

-the screen displays L, indicating that learning is started.

- The screen displays L, select first gear, release the clutch, and keep the speed higher than the idle speed.

- The display will flash "1";. Continue to maintain the first gear, accelerate. When the device is learning a gear, the display flashes faster.

- When the display shows n, relax the handlebar accelerator.When the gear indicator changes from "n" to "2", the motorcycle immediately shifts into "2" gear, then continue to to refuel and accelerate slowly.

- When the display shows n again, relax the handlebar accelerator again.When the gear indicator changes from "n" to "3",the motorcycle immediately shifts into "3" gear, then continue to refuel and accelerate slowly.

Repeat this process until all gears are thought.

In the highest gear, when learning sixth gear, the display will flash 6, accelerate until o is displayed, and then 6 will stay on and stop flashing. Indicates that the configuration is complete.

The unit is programmed and should indicate the gears correctly.

Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.

▲Note:

If your motorcycle model and year are within the above applicable model range, and it has 5th gear, you can directly refer to the above configuration method to perform the previous configuration until the gear indicator displays 6, and you do not have 6th gear. Can enter. You directly stay in 5th gear, and then continue to accelerate until the number 6 on the gear indicator is constantly lit, and that's it. If you have any questions, you can contact store customer service.

▲Rest:

If some gears are not indicated correctly, reset the unit and set it up again.If you change your gearing (install new front or rear sprocket),or you install a speedometer (or other speedometer calibrator),probably you will have to reset it and set it up again. Cut off the power of the unit 6 times in a row,while the display is counting up and shows3 ,4 or 5. You can power on/off the display by turning the ignition key on/off.On the next power up,the display will count backwards(6 to 1). The memory is clear now and you can perform the Setup procedure.

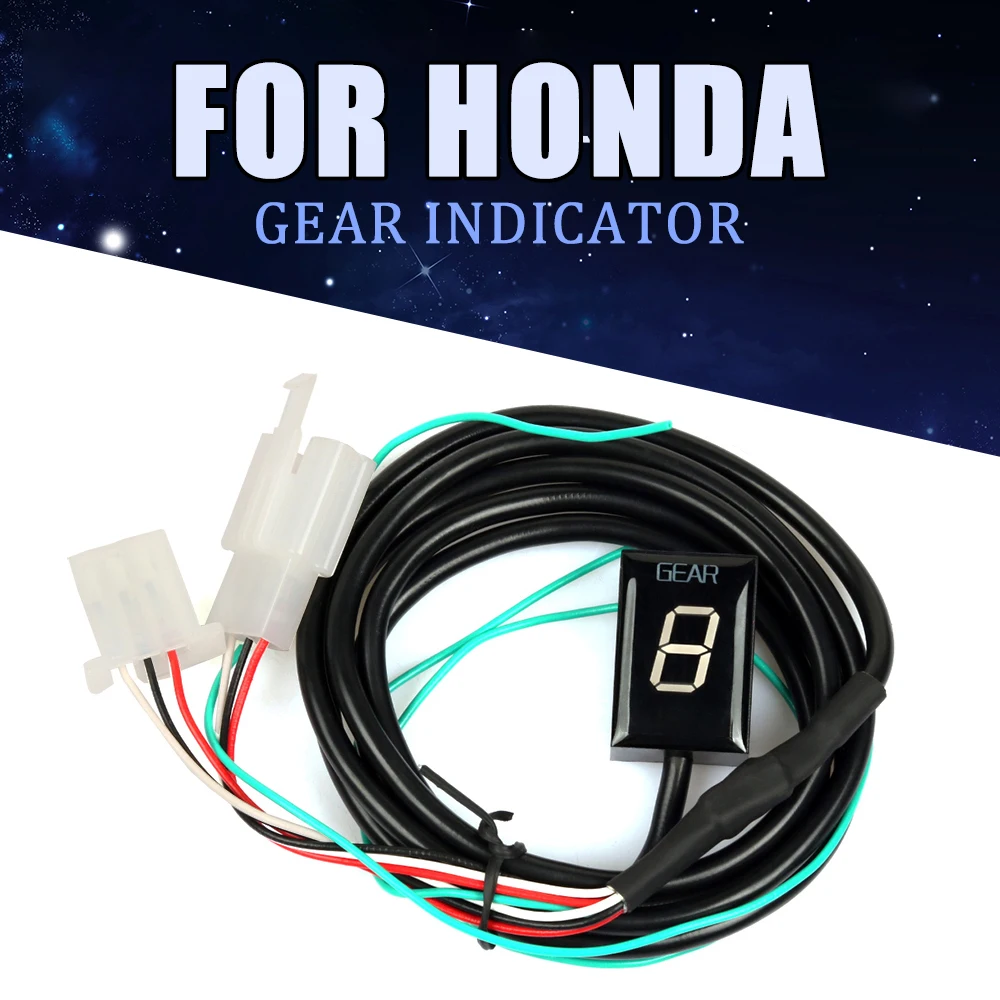

▶Product installation instructions and pictures:

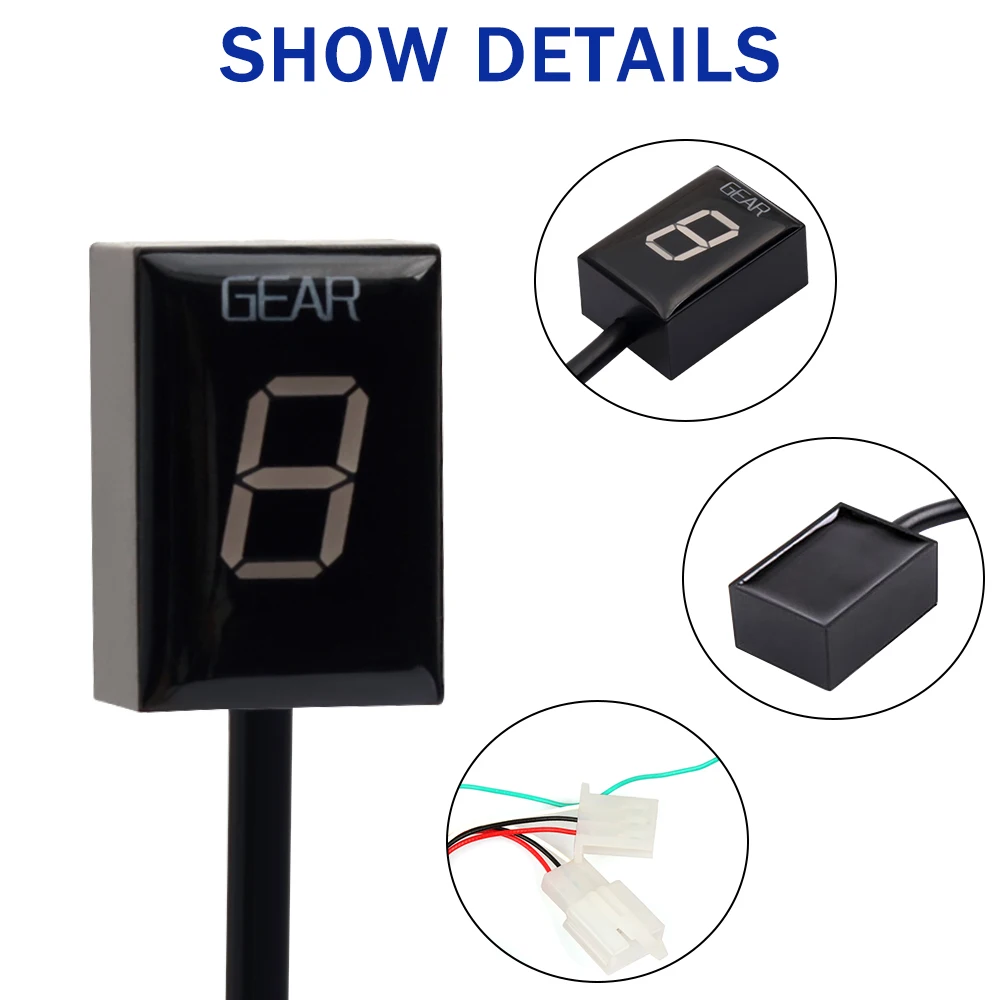

Locate the connector under the fuel tank or under the seat

The green cable connects to the motorcycle crankshaft sensor cable

If you have any questions, you can contact me. Thank you.

▲Package List:

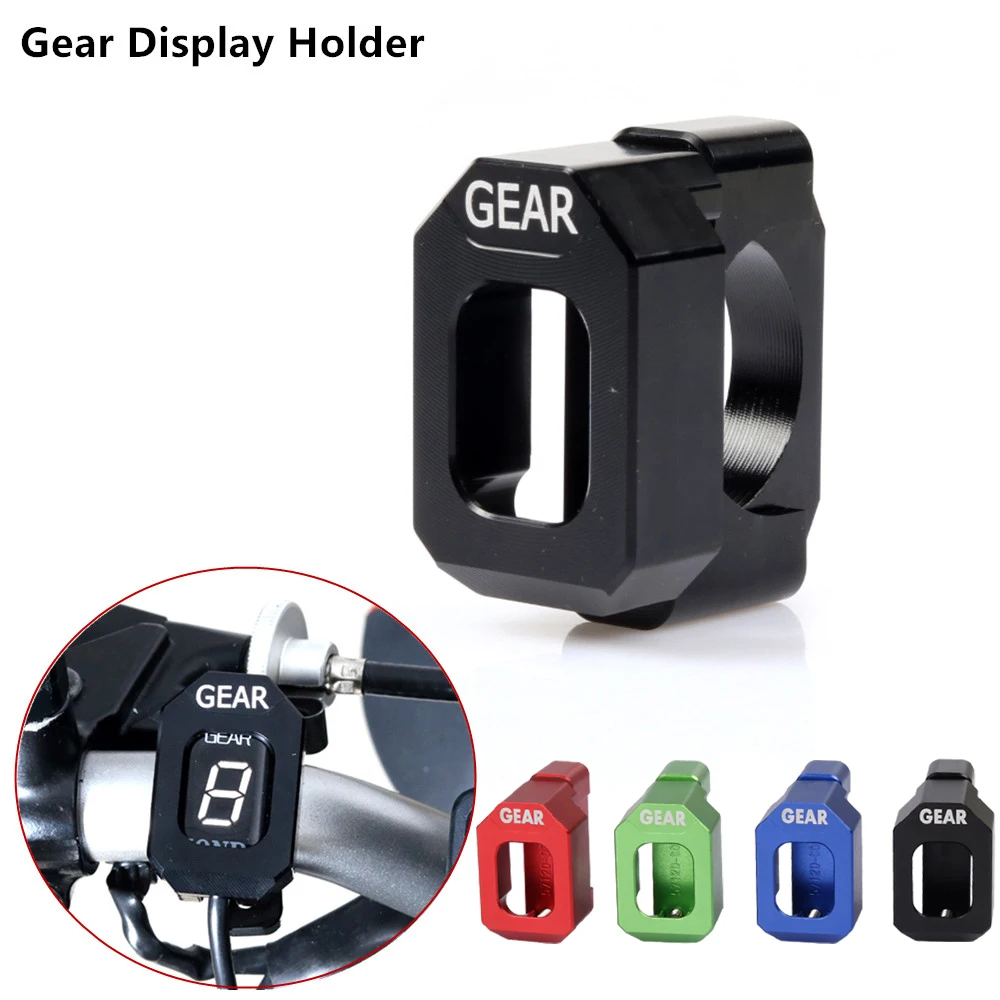

1 x Motorcycle Gear Indicator/Bracket(as shown in the picture)
