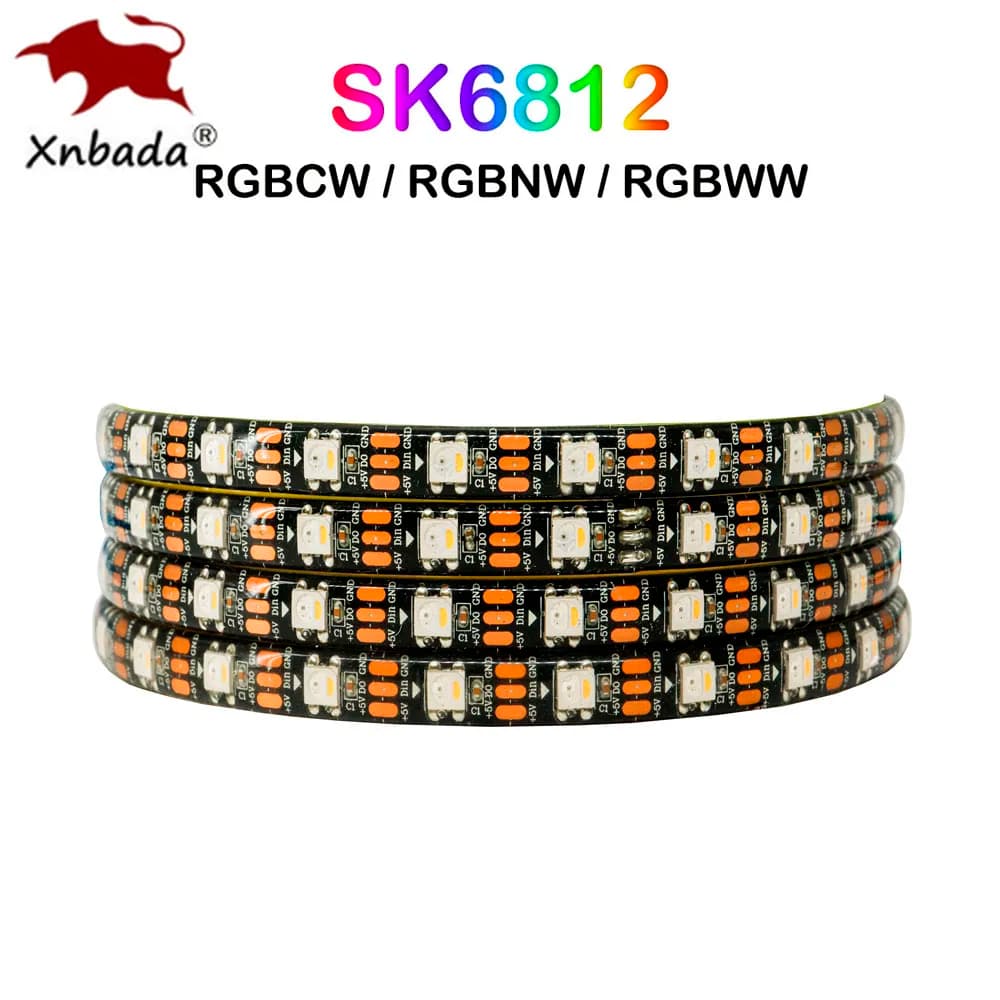

DC5V SK6812 RGBW 5050SMD LED Strip 30/60/144Leds/m WS2812B Individual Addressable RGBNW RGBWW 4 in 1 Flexible LED Light Tape

Notice:

1.The Price is only Led Strip, Not Included Power Supply or Led Controller!

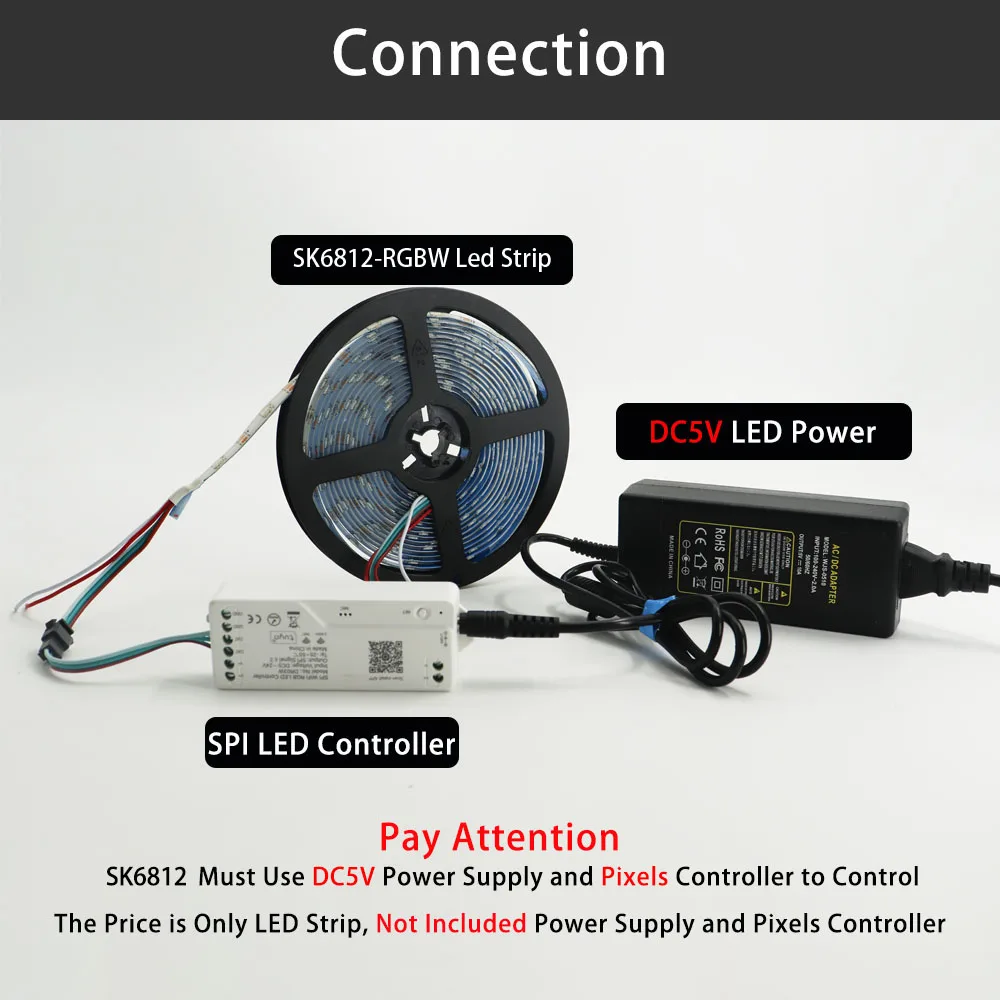

(SK6812 RGBW Must Use DC5V Power Supply AND Led Controller to Control)

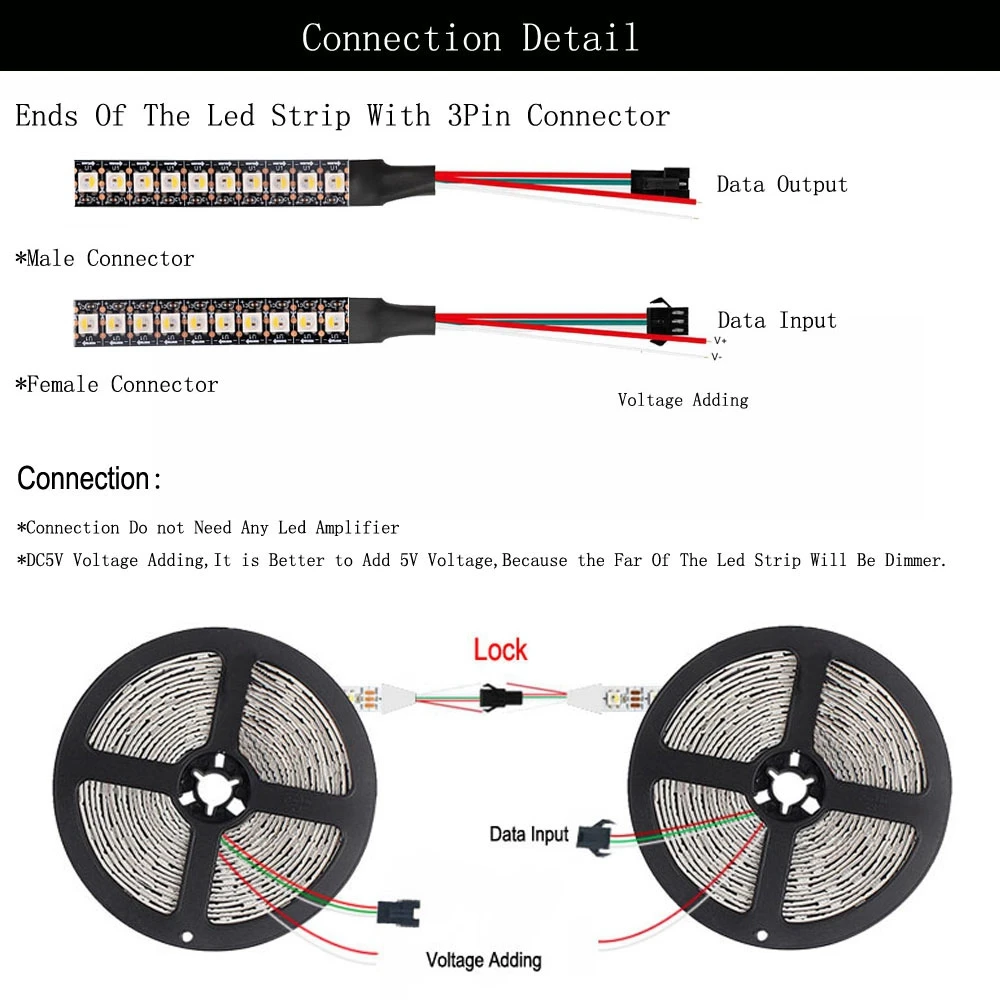

2.Every 0.5meter with solder joints, Please note!

RGBCW=RGB+Cool White

RGBNW=RGB+Nature White

RGBWW=RGB+Warm White

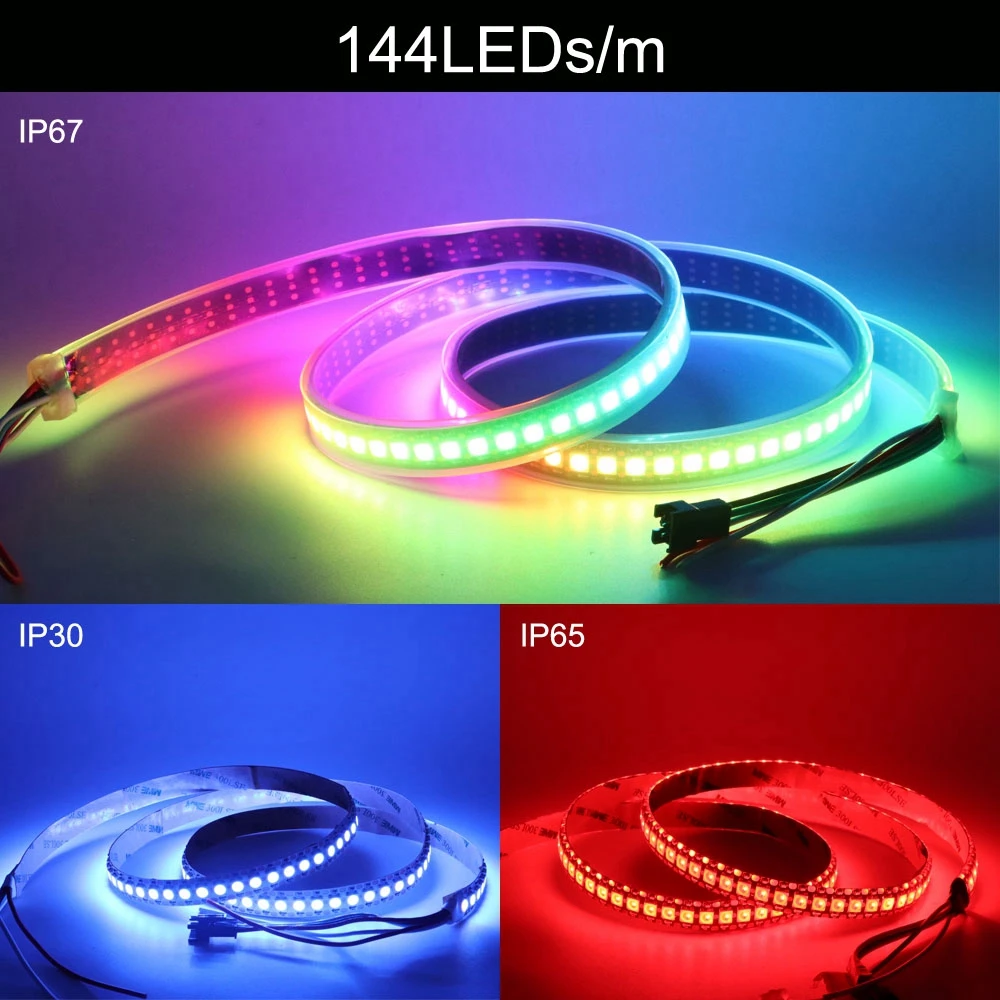

Waterproof Level:

IP30: Non- waterproof

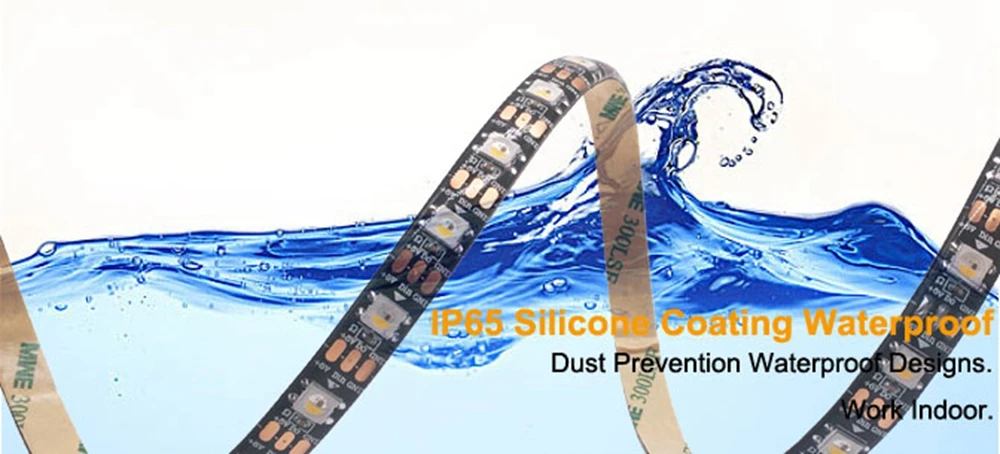

IP65: Waterproof in Silicon Coating

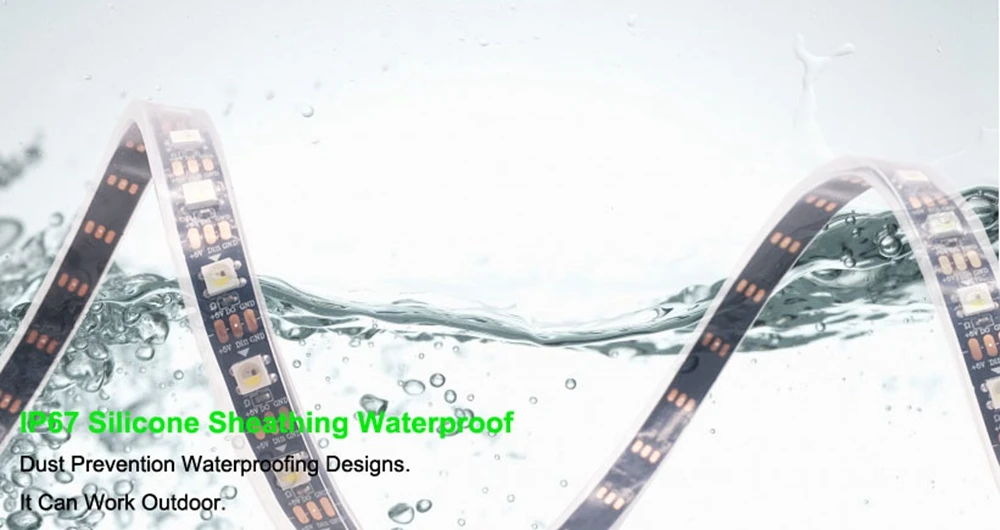

IP67: Waterproof in SiliconTube

The Length As You Choose

Product Details:

Led Source :                        5050SMD RGBCW/RGBNW/RGBWW Built-In SK6812 Chipset

Voltage:                               DC5V

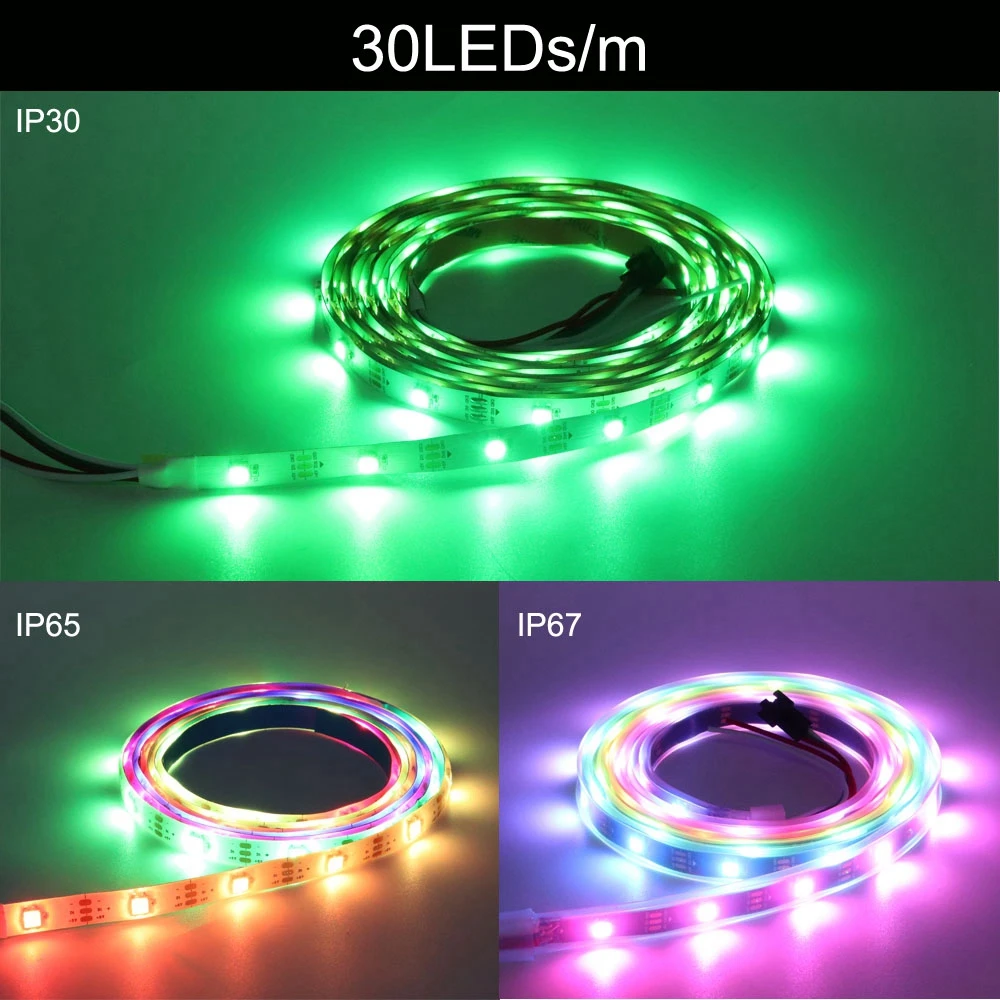

Power:                                30LEDs/meter ---------about 6W / Meter

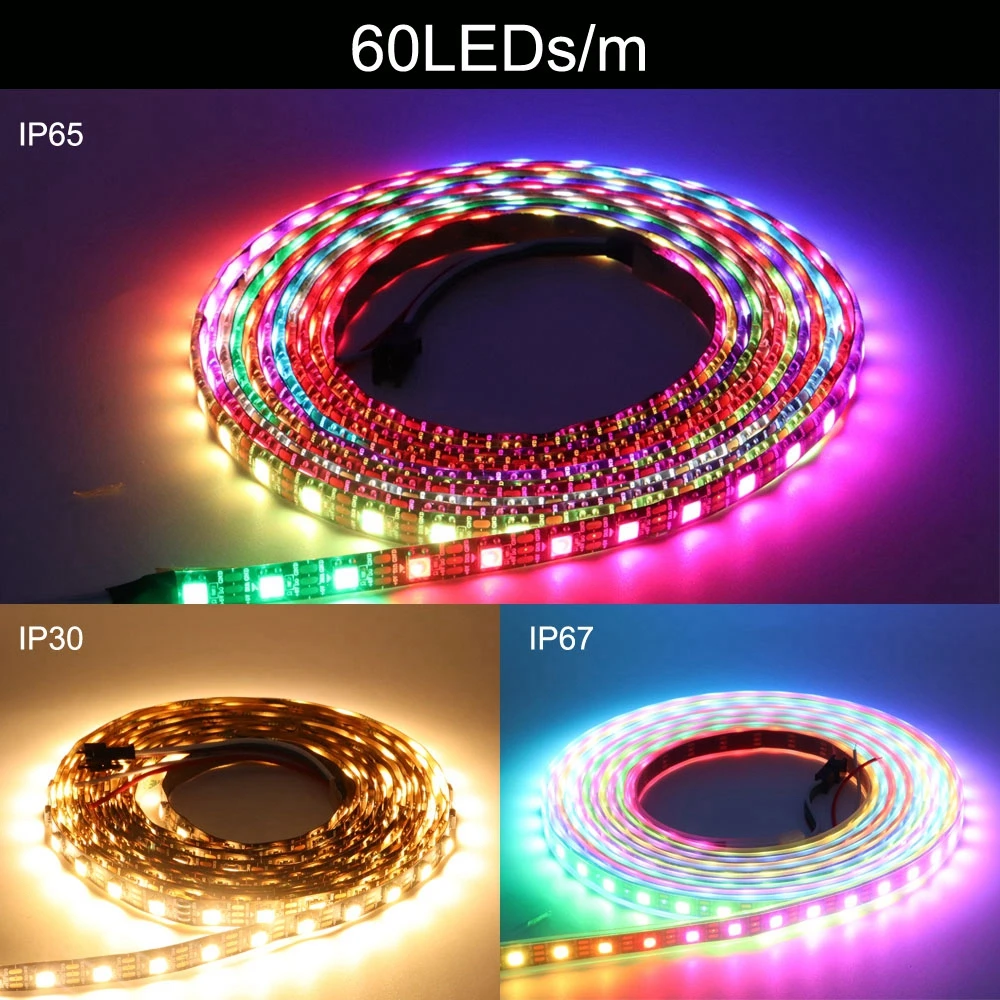

                                           60LEDs/meter ---------about 12W / Meter

                                           144LEDs/meter -------about 28.8W / Meter

Led Type :                                SMD5050

IC Type :                                  SK6812(Similar WS2812B)

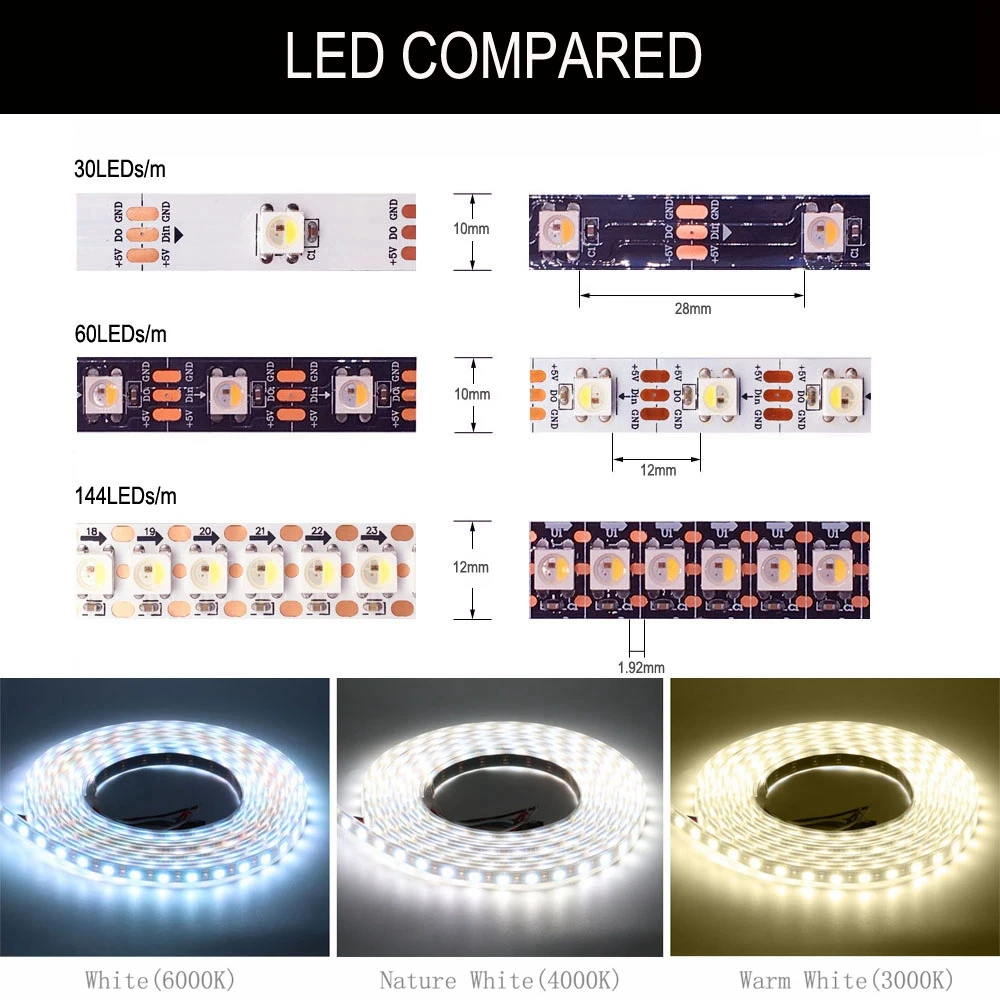

LED/Per Meter:                        30, 60,144Leds/Meter (Each Led Is Separately Controlled)

IC/Per Meter:                           30, 60,144IC/Meter (1 IC drives 1 led chip)

Pixel /Per Meter :                     30, 60,144Pixels/Meter

Grey Grade:                             256

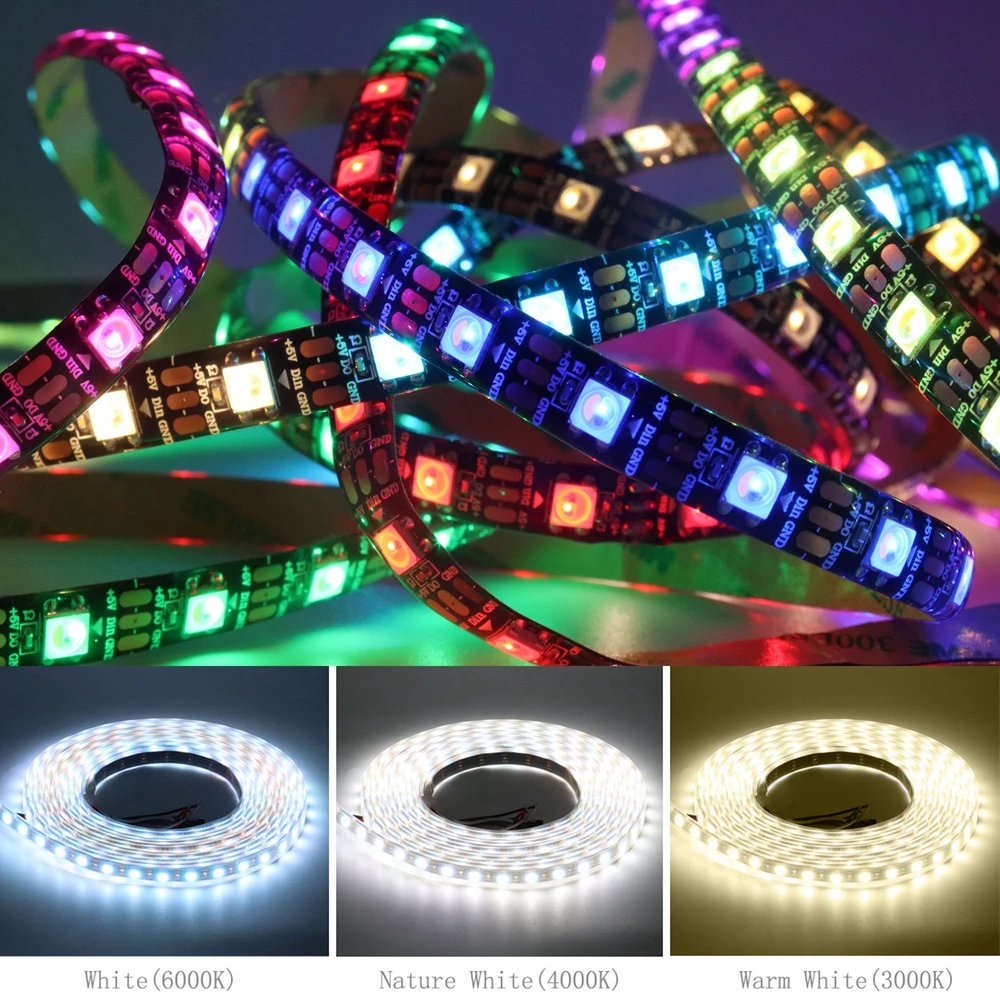

Color:                                       RGBCW/RGBNW/RGBWW(WW 2700-3000K ; NW 4000-4500K ;

CW6000-6500K)

PCB Color:                               White / Black Available

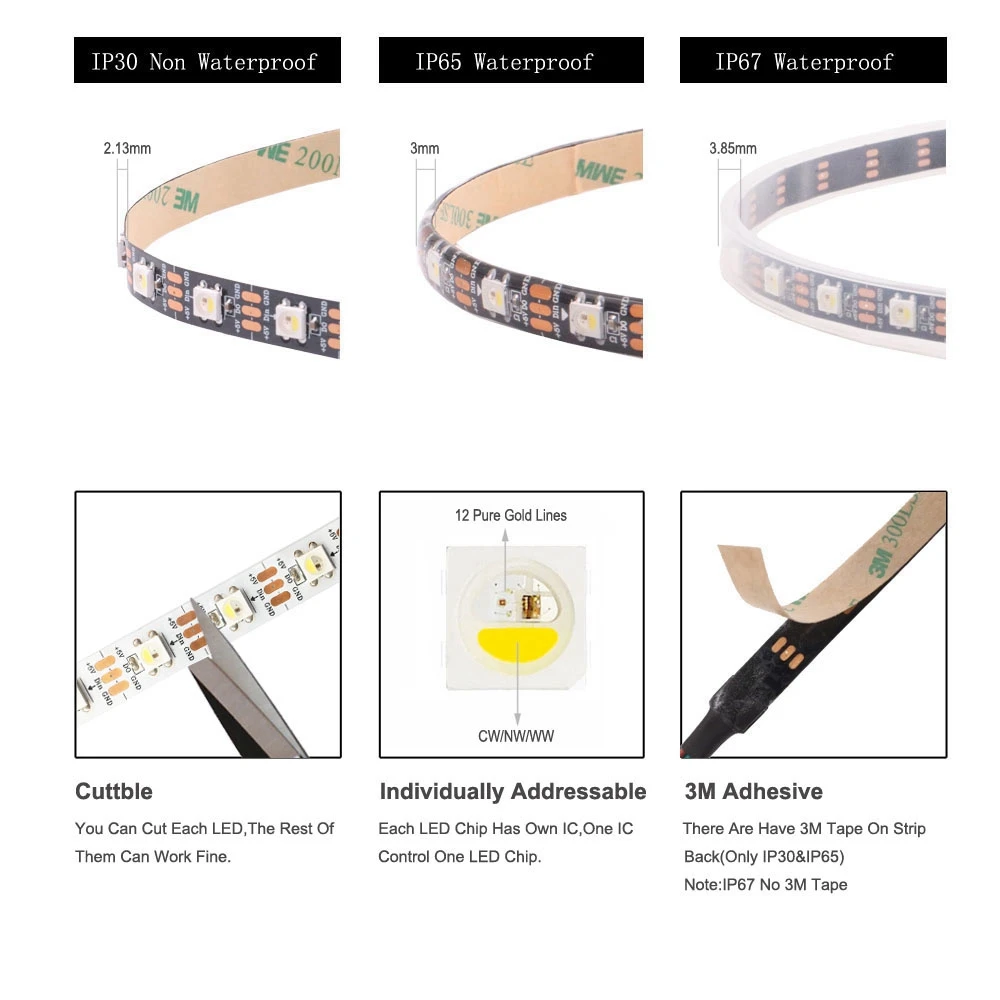

Waterproof Grade:

IP30-----NON-Waterproof

IP65-----Epoxy

IP67-----silicone tube

IP30,IP65 ,There is a 3M Self-Adhesive Tape at the back side. You can install easily

Application:

Applicable for automobile and bicycle decoration, border or contour lighting

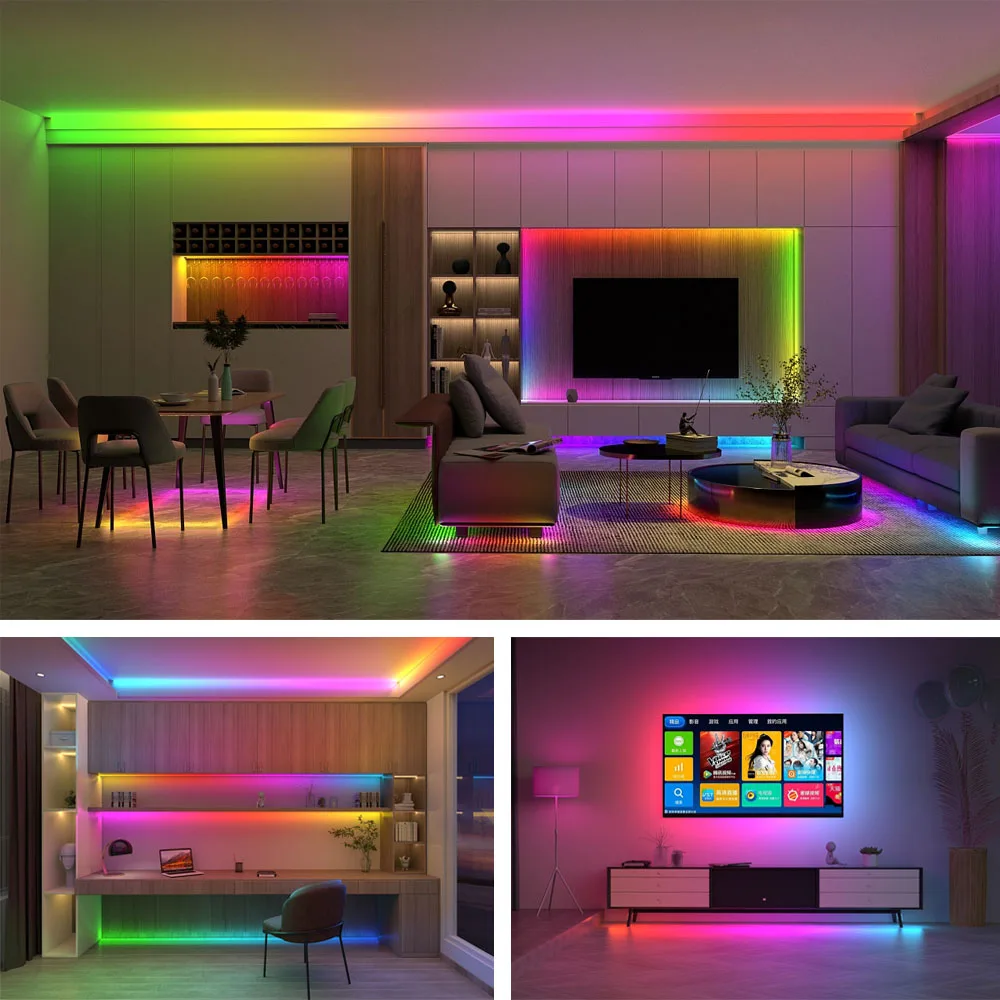

Widely used for home decoration use, hotels, clubs, shopping malls

Architectural decorative lighting, boutique atmosphere lighting

Extensively applied in Backlighting, concealed lighting, channel letter lighting

Emergency & security lighting, advertisement sign lighting

Decorative lights for holiday, event, show exhibition

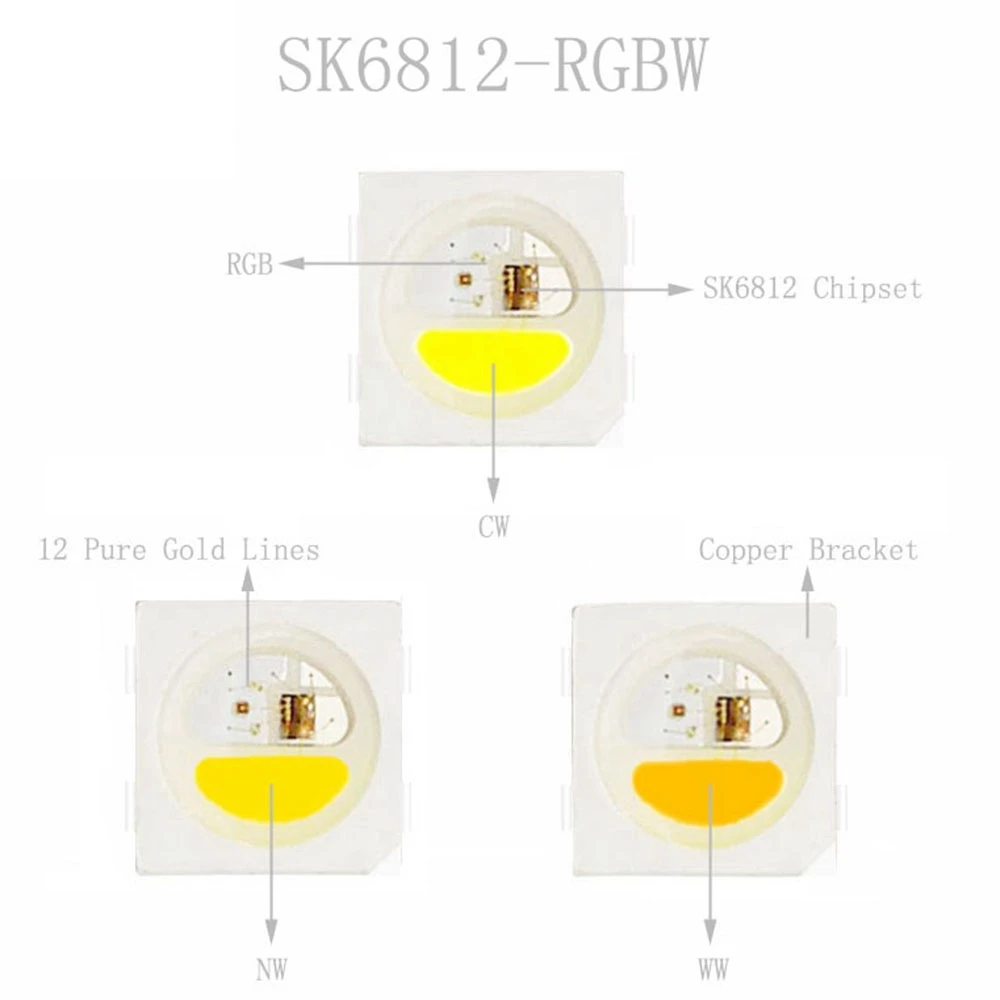

SK6812RGBW/RGBWW/RGBNW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of thepixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
