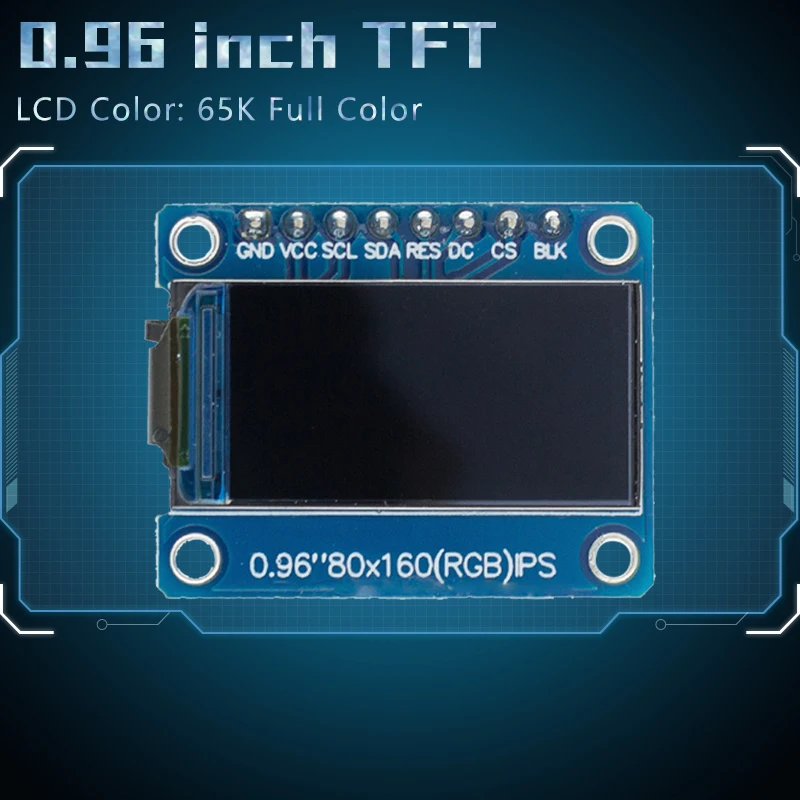

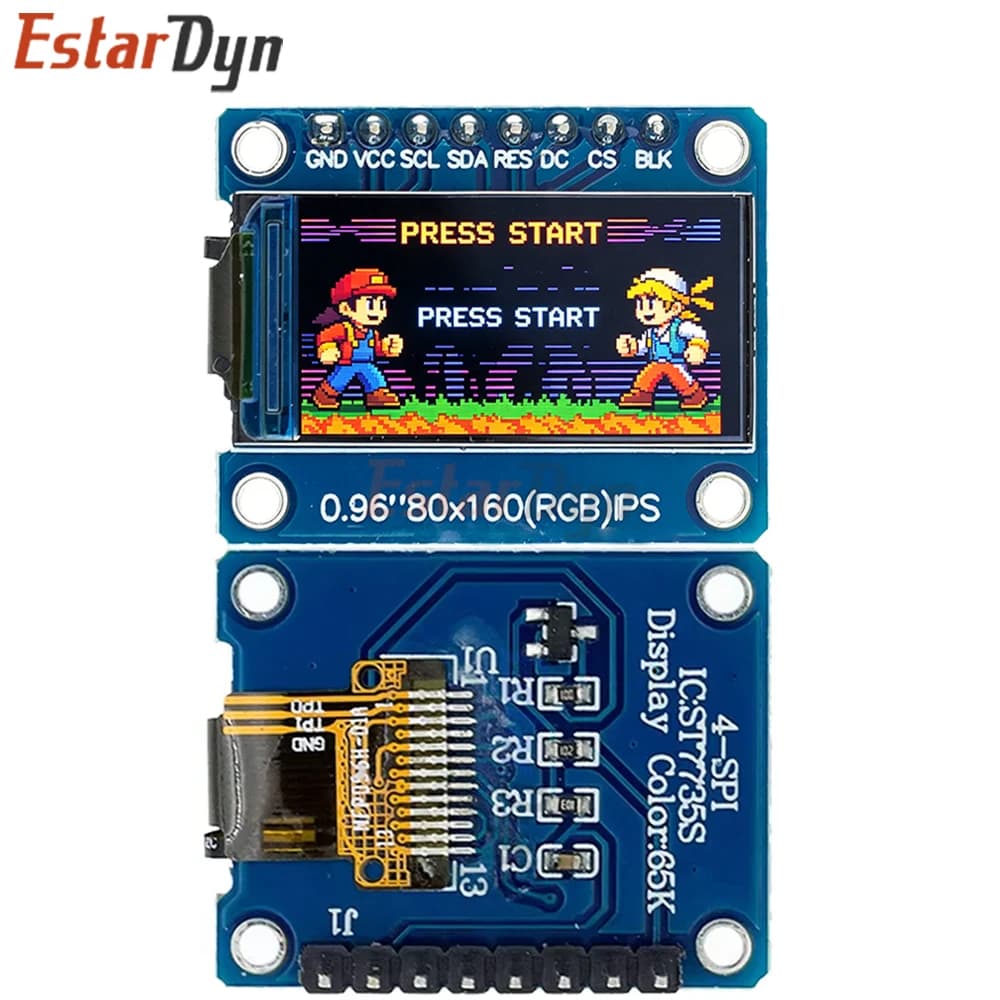

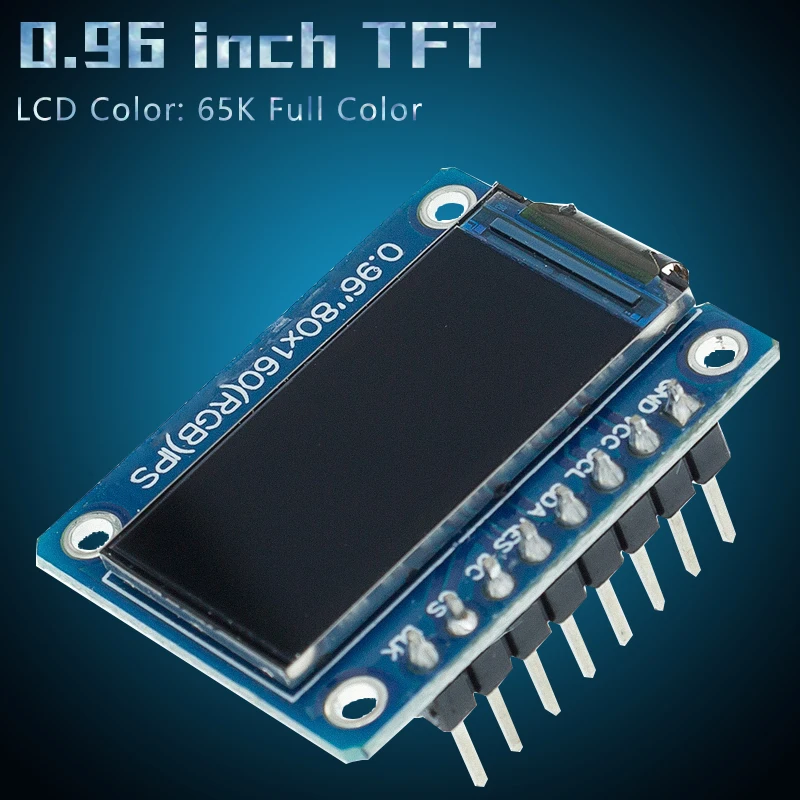

Estardyn 0.96 Inch IPS LCD TFT Display Module 160x80 HD 65K SPI Interface ST7735S 3.3V For Raspberry Pi DIY Project
5.94$
2.74$
Quantity:
1
Availability:
Card Payments
Crypto Payments
Easy return
Reliable Shipping
1.Features
SIZE 0.96inch
Display Mode Normally black IPS
Display Format Graphic 80RGB*160 Dot-matrix
Input Data SPI interface
Drive IC ST7735S
Dimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution 80RGB*160 Dots
LCD Active area 10.8 (W)*21.7 (H)
Dot pitch 0.135(H) x 0.1356(V) mm
Viewing Direction All View
Operating Temperature -20～70°C
2.Pin Descriptions：
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
Customer Reviews
161 ratings
meets expectations (18)
quality product (10)
fast service (10)
good condition (6)
well-protected (4)
not functional (4)
Customer photos (20)
Buyer from United States
September 1, 2026

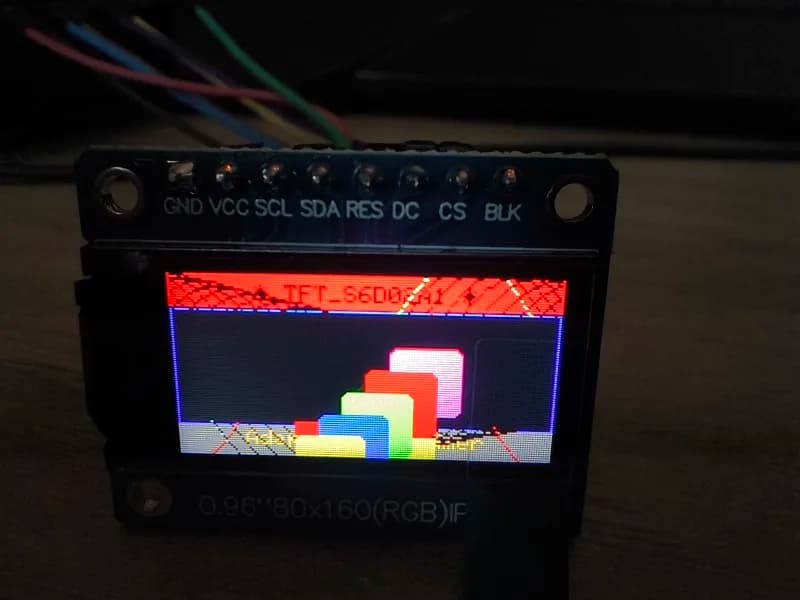

I tested and could only manage to test the backlight. I used all the different Arduino libraries with no success.
Buyer from United States
May 29, 2026
great seller fast service quality product will buy again
N***e
May 22, 2026
Hello Order as expected, thank you. Best regards NKS
Translated by AliExpress ·
N***e
May 22, 2026
Hello Order as expected, thank you. Best regards NKS
Translated by AliExpress ·
B***e
May 15, 2026
Arrived fine. and in good shape. Looking forward to using in a project.
Buyer from Mexico
October 9, 2026

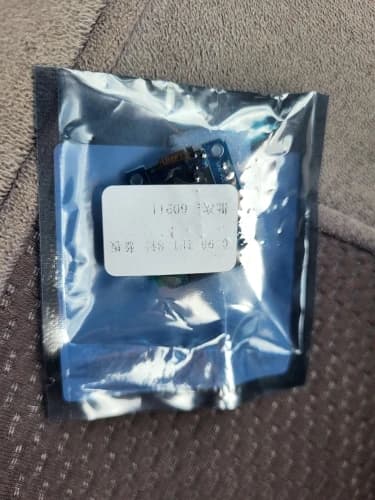

It arrived in good condition and has a nice color.
